BAP SERIES AIR PUMPS

Oil Capacity: 1600-4500 ml   Max. Pressure: 700 Bar   Control Way: ：Foot pedal. remote

FEATURES AND BENEFITS:
  • 1. Heavy duty construction for extended lift and ease of maintenance
  • 2. Air exhaust muffler for quiet operation
  • 3. Pumps feature both air and oil filters to reduce risk of damage from contaminates
  • 4. Internal load limiting device prevents overload

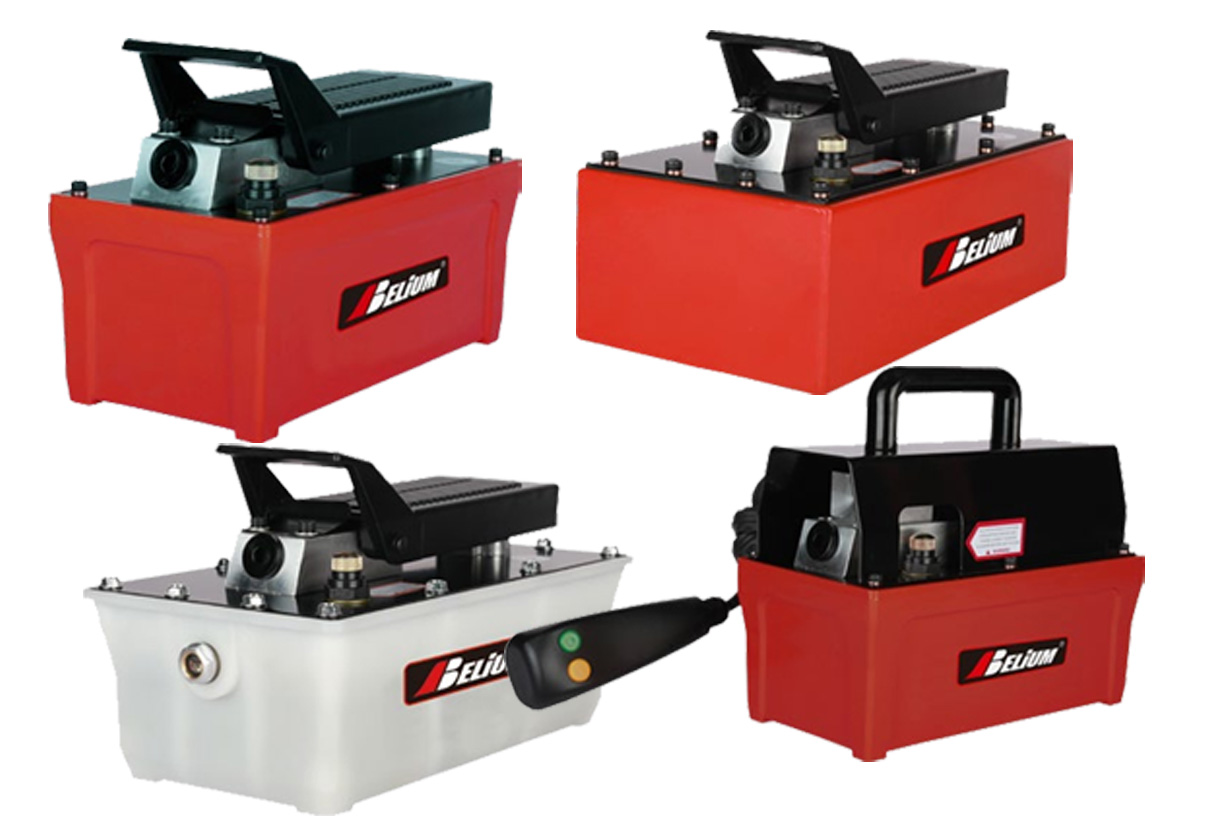

BAP SERIES AIR PUMPS

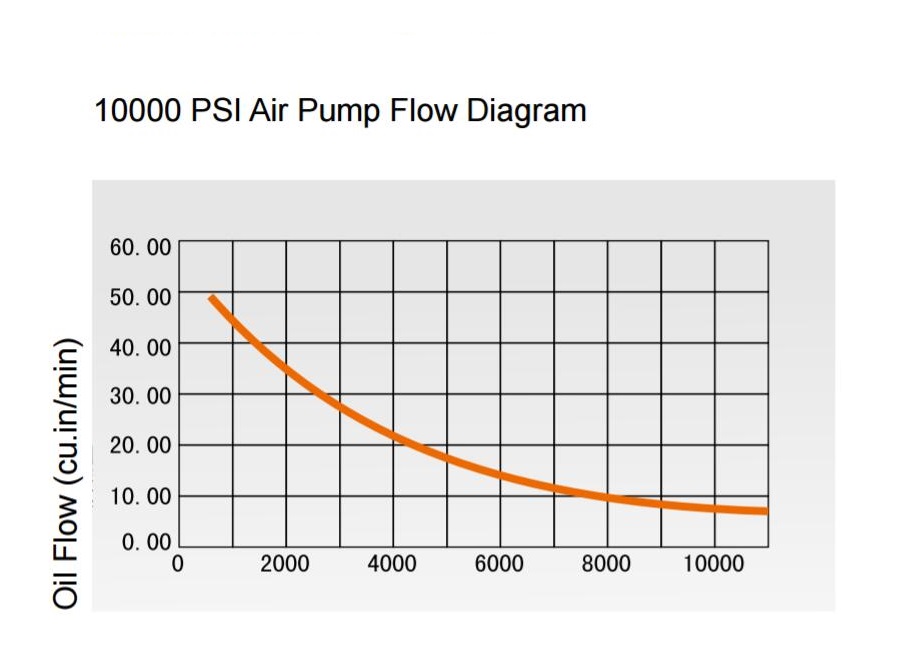

Flow diagram of BAP SERIES AIR PUMPS

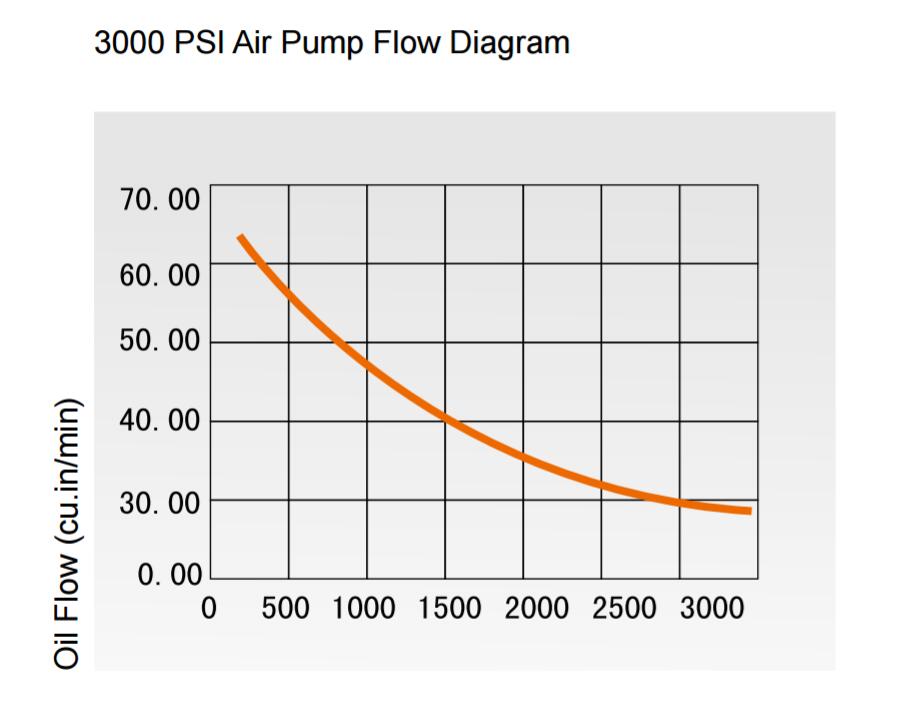

Flow diagram of BAP SERIES AIR PUMPS
MODEL CYLINDER TYPE PRESSURE AIR PRESSURE AIR VOLUME USABLE OIL VOLUME FLOW RATE VALVE FUNCTION DIMENSIONS RESERVOIR MATERIAL CONTROL TYPE WEIGHT
NO LOAD LOAD
L W H
BAR BAR L/MIN CM³ CM³ CM³ MM MM MM KG
BAP-001 SINGLE ACTING 0-700 6-10 300.00 2300.00 0.80 0.12 2W2P 312.00 170.00 190.00 PLASTIC FOOT PEDAL 11.8
BAP-002 300.00 1600.00 0.80 0.12 263.00 136.00 185.00 ALUMINUM FOOT PEDAL 8.6
BAP-003 300.00 4500.00 0.80 0.12 317.00 178.00 190.00 STEEL FOOT PEDAL 12.7
BAP-004 300.00 7200.00 0.80 0.12 280.00 225.00 254.00 STEEL FOOT PEDAL 16.5
BAP-005 300.00 2300.00 0.80 0.12 312.00 170.00 220.00 PLASTIC REMOTE 12.5
