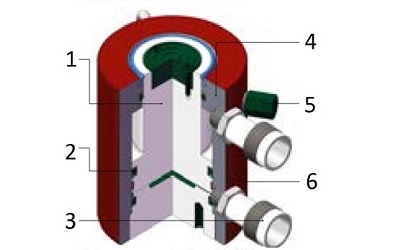

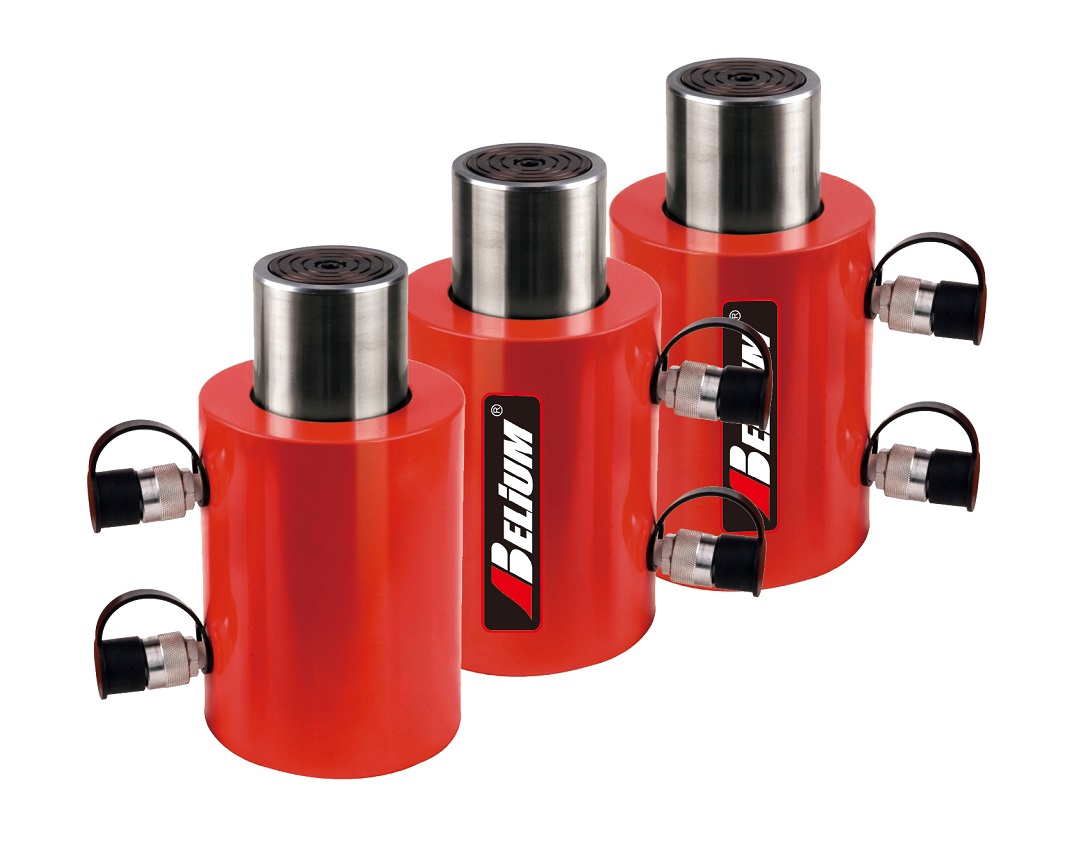

The BMDX double acting high tonnage industrial cylinders is specifically designed for lifting and maintenance applications. All models are supplied with a tilting saddle to reduce the risk of damage caused by side loading and an integral stop ring for stroke limitation is fitted as standard. Standard range models are featured in this catalogue, however additional capacities and stroke options are available on request.
| Cylinder Model | Saddle Model | Saddle Size | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| mm | mm | mm | mm | mm | ||
| BMSX-50T/BMDX-50T | STX-50 | 49 | 24 | 43 | 39 | 49 |
| BMSX-100T/BMDX-100T | STX-100 | 73 | 29 | 48 | 55 | 74 |
| BMSX-150T/BMDX-150T | STX-150 | 91 | 31 | 50 | 74 | 94 |
| BMSX-200T/BMDX-200T | STX-200 | 118 | 35 | 59 | 90 | 113 |
| BMSX-250T/BMDX-250T | STX-250 | 144 | 46 | 70 | 120 | 145 |
| BMSX-300T/BMDX-300T | STX-300 | 158 | 62 | 81 | 150 | 177 |
| BMSX-400T/BMDX-400T | STX-400 | 193 | 51 | 78 | 170 | 196 |
| BMSX-500T/BMDX-500T | STX-500 | 228 | 63 | 90 | 200 | 228 |
| BMSX-600T/BMDX-600T | STX-600 | 241 | 76 | 103 | 220 | 247 |
| BMSX-800T/BMDX-800T | STX-800 | 297 | 75 | 102 | 260 | 297 |
| BMSX-1000T/BMDX-1000T | STX-1000 | 311 | 93 | 120 | 295 | 323 |
| MODEL | CYLINDER CAPACITY @ 10,000 PSI (700 BAR) |

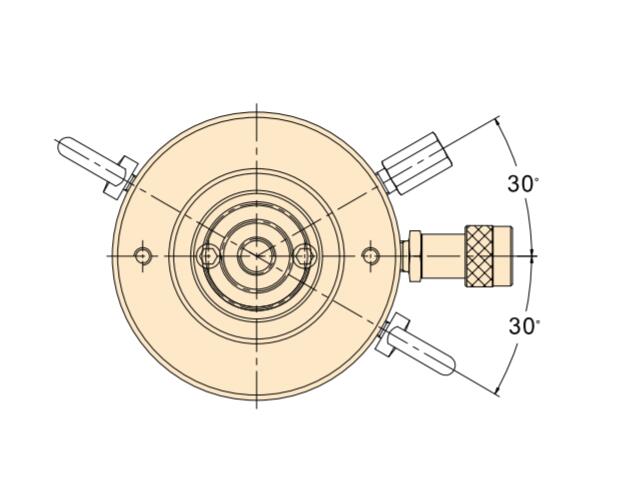

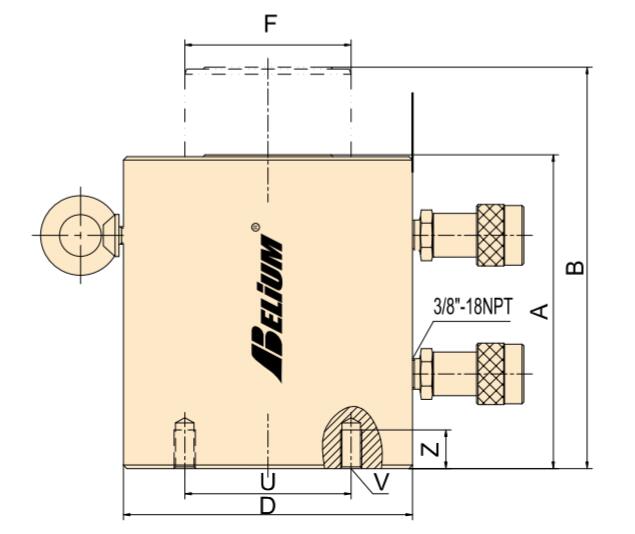

STROKE | MAX. CYLINDER CAPACITY | CYLINDER EFFECTIVE AREA | OIL CAPACITY | COLLAPSED HEIGHT | EXTENDED HEIGHT | OUTSIDE DIAMETER | PISTON DIAMETER | WEIGHT | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADVANCE | RETRACT | ADVANCE | RETRACT | ADVANCE | RETRACT | ||||||||
| A | B | D | F | ||||||||||
| METRIC TON (US TON) | IN | Metric Ton | Metric Ton | CM² | CM² | CM³ | CM³ | MM | MM | MM | MM | KG | |
| BMDX-502 | 50 (55) | 50.00 | 53 | 26 | 75.40 | 36.90 | 377 | 185 | 162.00 | 212.00 | 129.00 | 70.00 | 17.00 |
| BMDX-504 | 100.00 | 75.40 | 36.90 | 754 | 369 | 212.00 | 312.00 | 129.00 | 70.00 | 19.50 | |||
| BMDX-506 | 150.00 | 75.40 | 36.90 | 1,131 | 554 | 262.00 | 412.00 | 129.00 | 70.00 | 22.00 | |||
| BMDX-508 | 200.00 | 75.40 | 36.90 | 1,508 | 738 | 312.00 | 512.00 | 129.00 | 70.00 | 25.50 | |||
| BMDX-5010 | 250.00 | 75.40 | 36.90 | 1,885 | 923 | 362.00 | 612.00 | 129.00 | 70.00 | 29.00 | |||
| BMDX-5012 | 300.00 | 75.40 | 36.90 | 2,262 | 1,107 | 412.00 | 712.00 | 129.00 | 70.00 | 31.50 | |||
| BMDX-1002 | 100 (105) | 50.00 | 93 | 43 | 132.70 | 61.90 | 664 | 309 | 179.00 | 229.00 | 165.00 | 95.00 | 29.00 |
| BMDX-1004 | 100.00 | 132.70 | 61.90 | 1,327 | 619 | 229.00 | 329.00 | 165.00 | 95.00 | 34.00 | |||
| BMDX-1006 | 150.00 | 132.70 | 61.90 | 1,991 | 928 | 279.00 | 429.00 | 165.00 | 95.00 | 40.00 | |||
| BMDX-1008 | 200.00 | 132.70 | 61.90 | 2,655 | 1,237 | 329.00 | 529.00 | 165.00 | 95.00 | 46.00 | |||
| BMDX-10010 | 250.00 | 132.70 | 61.90 | 3,318 | 1,546 | 379.00 | 629.00 | 165.00 | 95.00 | 53.00 | |||
| BMDX-10012 | 300.00 | 132.70 | 61.90 | 3,982 | 1,856 | 429.00 | 729.00 | 165.00 | 95.00 | 79.00 | |||
| BMDX-1502 | 150 (155) | 50.00 | 140 | 68 | 201.00 | 97.10 | 1,005 | 486 | 196.00 | 246.00 | 205.00 | 115.00 | 39.00 |
| BMDX-1504 | 100.00 | 201.00 | 97.10 | 2,010 | 971 | 246.00 | 346.00 | 205.00 | 115.00 | 52.00 | |||
| BMDX-1506 | 150.00 | 201.00 | 97.10 | 3,015 | 1,457 | 296.00 | 446.00 | 205.00 | 115.00 | 65.00 | |||
| BMDX-1508 | 200.00 | 201.00 | 97.10 | 4,020 | 1,942 | 346.00 | 546.00 | 205.00 | 115.00 | 78.00 | |||
| BMDX-15010 | 250.00 | 201.00 | 97.10 | 5,025 | 2,428 | 396.00 | 646.00 | 205.00 | 115.00 | 92.00 | |||
| BMDX-15012 | 300.00 | 201.00 | 97.10 | 6,030 | 2,913 | 446.00 | 764.00 | 205.00 | 115.00 | 105.00 | |||
| BMDX-2002 | 200 (220) | 50.00 | 185 | 88 | 268.70 | 125.60 | 1,344 | 628 | 212.00 | 262.00 | 235.00 | 135.00 | 55.00 |
| BMDX-2006 | 150.00 | 268.70 | 125.60 | 4,031 | 1,884 | 312.00 | 462.00 | 235.00 | 135.00 | 91.00 | |||
| BMDX-20012 | 300.00 | 268.70 | 125.60 | 8,061.00 | 3,768.00 | 462.00 | 762.00 | 235.00 | 135.00 | 146.00 | |||
| BMDX-2502 | 250 (275) | 50.00 | 254 | 105 | 362.90 | 149.20 | 1,815.00 | 736.00 | 235.00 | 285.00 | 275.00 | 165.00 | 89.00 |
| BMDX-2506 | 150.00 | 362.90 | 149.20 | 5,444.00 | 2,289.00 | 335.00 | 485.00 | 275.00 | 165.00 | 136.00 | |||
| BMDX-25012 | 300.00 | 362.90 | 149.20 | 10,887.00 | 4,578.00 | 485.00 | 785.00 | 275.00 | 165.00 | 207.00 | |||
| BMDX-3002 | 300 (330) | 50.00 | 316 | 108 | 452.20 | 153.70 | 2,261.00 | 769.00 | 322.00 | 372.00 | 310.00 | 200.00 | 184.00 |
| BMDX-3006 | 150.00 | 452.20 | 153.70 | 6,783.00 | 2,306.00 | 422.00 | 572.00 | 310.00 | 200.00 | 232.00 | |||
| BMDX-30012 | 300.00 | 452.20 | 153.70 | 13,566.00 | 4,611.00 | 572.00 | 872.00 | 310.00 | 200.00 | 303.00 | |||
| BMDX-4002 | 400 (440) | 50.00 | 386 | 132 | 572.00 | 188.40 | 2,860.00 | 1,055.00 | 374.00 | 424.00 | 350.00 | 215.00 | 270.00 |
| BMDX-4006 | 150.00 | 572.00 | 188.40 | 7,580.00 | 3,165.00 | 474.00 | 642.00 | 350.00 | 215.00 | 330.00 | |||
| BMDX-40012 | 300.00 | 572.00 | 188.40 | 15,160.00 | 6,330.00 | 624.00 | 924.00 | 350.00 | 215.00 | 421.00 | |||
| BMDX-5002 | 500 (550) | 50.00 | 511 | 168 | 730.20 | 239.60 | 3,651.00 | 1,198.00 | 419.00 | 469.00 | 400.00 | 250.00 | 410.00 |
| BMDX-5006 | 150.00 | 730.20 | 239.60 | 10,953.00 | 3,594.00 | 519.00 | 669.00 | 400.00 | 250.00 | 480.00 | |||
| BMDX-50012 | 300.00 | 730.20 | 239.60 | 21,906.00 | 7,188.00 | 669.00 | 969.00 | 400.00 | 250.00 | 559.00 | |||
| BMDX-6002 | 600 (660) | 50.00 | 599 | 213 | 854.90 | 303.60 | 4,275.00 | 1,518.00 | 429.00 | 479.00 | 430.00 | 265.00 | 474.00 |
| BMDX-6006 | 150.00 | 854.90 | 303.60 | 12,824.00 | 4,554.00 | 529.00 | 679.00 | 430.00 | 265.00 | 565.00 | |||
| BMDX-60012 | 300.00 | 854.90 | 303.60 | 25,647.00 | 9,108.00 | 679.00 | 979.00 | 430.00 | 265.00 | 710.00 | |||
| BMDX-8002 | 800 (880) | 50.00 | 815 | 252 | 1,163.60 | 384.70 | 5,818.00 | 1,924.00 | 484.00 | 534.00 | 505.00 | 320.00 | 741.00 |
| BMDX-8006 | 150.00 | 1,163.60 | 384.70 | 17,454.00 | 5,771.00 | 584.00 | 734.00 | 505.00 | 320.00 | 868.00 | |||
| BMDX-80012 | 300.00 | 1,163.60 | 384.70 | 34,908.00 | 11,541.00 | 734.00 | 1,034.00 | 505.00 | 320.00 | 1,058.00 | |||
| BMDX-10002 | 1000 (1100) | 50.00 | 1017 | 362 | 1,451.50 | 517.10 | 7,258.00 | 2,586.00 | 564.00 | 614.00 | 560.00 | 345.00 | 1,062.00 |
| BMDX-10006 | 150.00 | 1,451.50 | 517.10 | 21,773.00 | 7,757.00 | 664.00 | 814.00 | 560.00 | 345.00 | 1,213.00 | |||
| BMDX-100012 | 300.00 | 1,451.10 | 517.10 | 43,545.00 | 15,513.00 | 814.00 | 1,114.00 | 560.00 | 345.00 | 1,439.00 | |||
