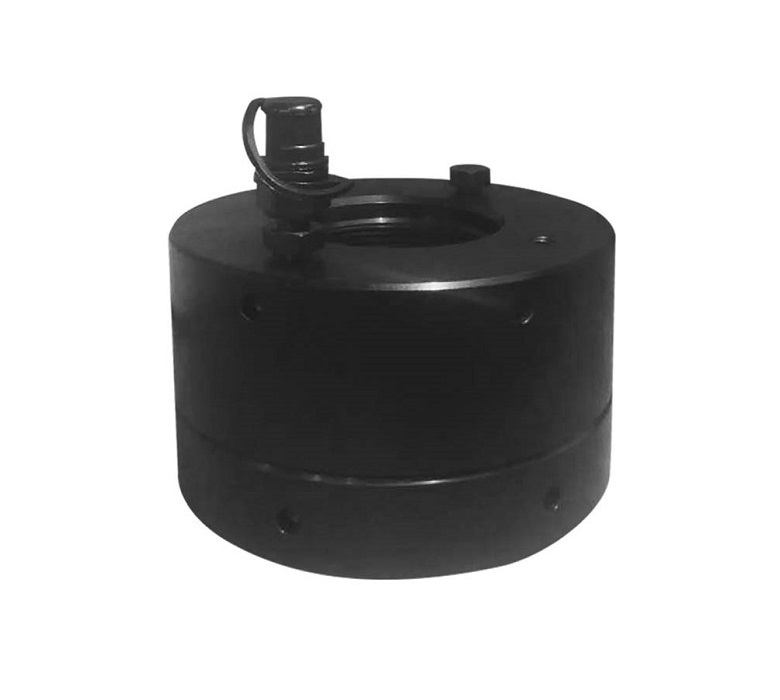

BELIUM BBHN series hydraulic nuts are designed and manufactured for inspection and regular maintenance and need to open the flange connection. Unlike traditional hydraulic bolt tensioners, the BELIUM HTW series hydraulic nuts are designed to permanently replace the flange with a standard hex nut. Once the hydraulic tensile force is applied to the bolt, the hydraulic tensile force is permanently preserved by the built-in mechanical load ring of the hydraulic nut

Standard series hydraulic nut, the bolt size from M22 to M100, other sizes can be customized. Hydraulic nut working pressure is 1500Bar, with quick connector, suitable for use with BELIUM manual or pneumatic or electric hydraulic bolt tensioner pump.

Typical application:

Under various conditions, high load strong vibration of the mechanical precision and reliable fastening.

• . Oil industry: oilfield BOP, oil tree
• . Mining: Shearer, Excavator, Bucket Wheel, Super Heavy Vehicle
• . Power plant: high pressure feed pump, compressor, rock mill, steam turbine, back wheel
• . Petrochemical: reactor, high pressure feed pump, compressor, rock mill, flue gas turbine
• . Ship: diesel engine, spindle system, back wheel
• . Steel: rolling mill, water press, slab shear, back wheel

Order Description:

• 1. please specify the order when the oil or under the oil, the factory standard for the oiling structure;
• 2. the series of hydraulic nut can be customized specifications are: M22-M600; working pressure: 63-180Mpa;
• 3. the thread form are: ordinary thread, trapezoidal thread and rectangular thread, the user can choose according to need.
