BFS-14 FLANGE SPREADER

FEATURES AND BENEFITS:
  • 1. Single acting, spring return cylinder allows jaws to Retract automatically once pressure is released.
  • 2. High strength, forged alloy steel steel jaws.
  • 3. Complies with ansi/asme B30.1 Standard

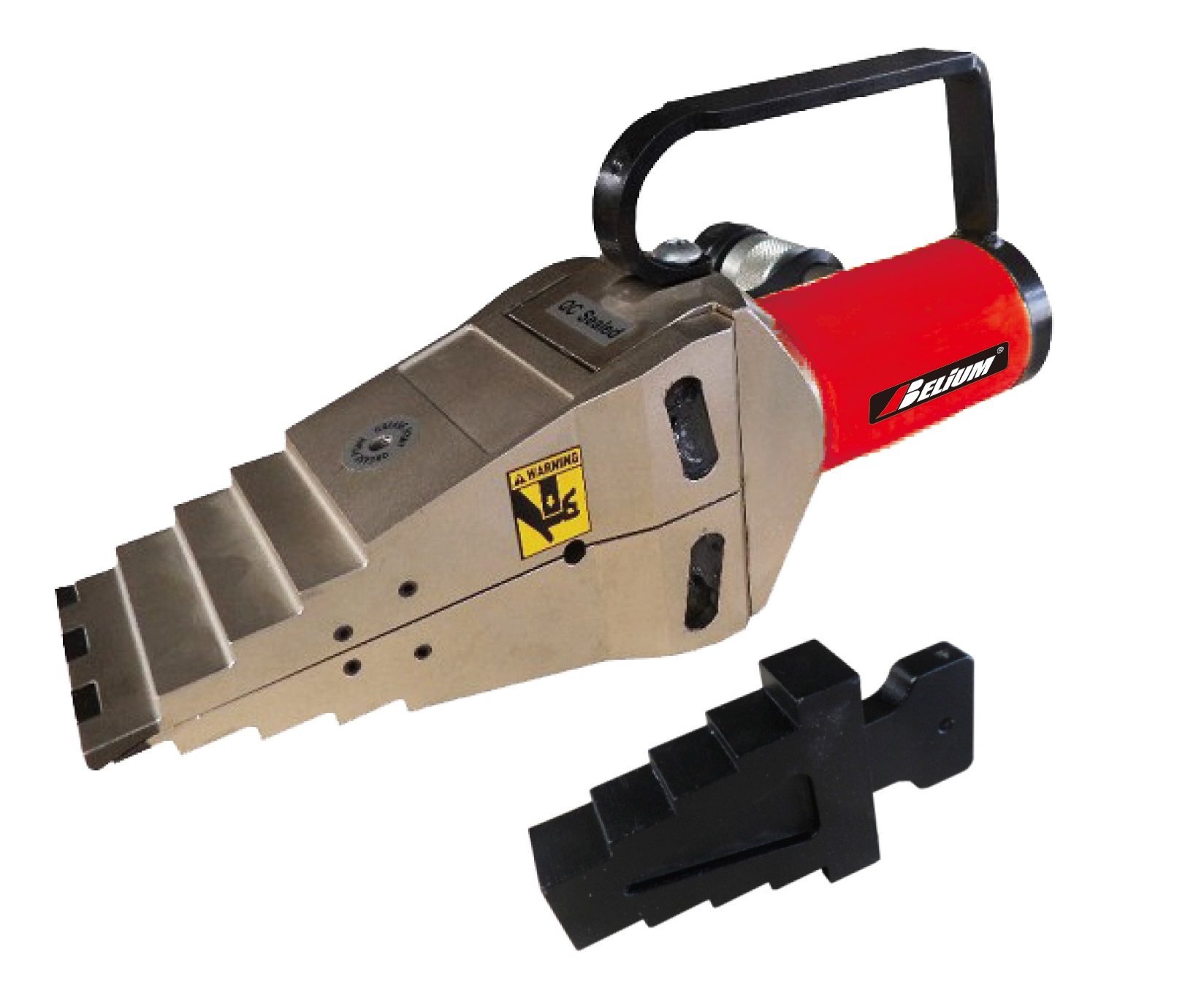

BFS-14 FLANGE SPREADER

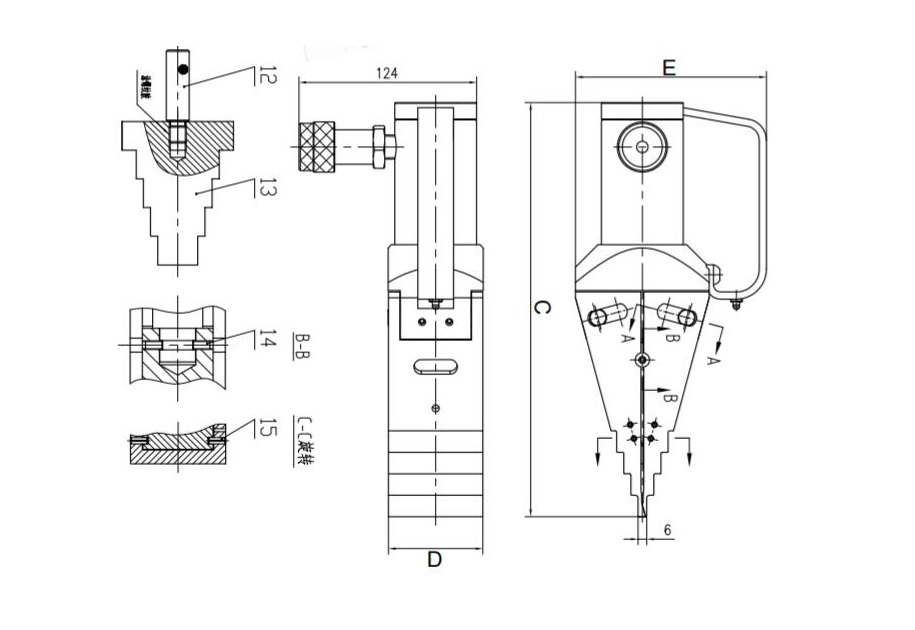

Design of BFS-14 FLANGE SPREADER
Model Cylinder Capacity Stroke Top Clearance Max. Spread Distance Cylinder Effective Area Weight Dimensions
C D E
Metric Ton mm mm/A mm/B CM² kg mm mm mm
BFS-14 14 121 6 81 1451 7.5 290 66 133
