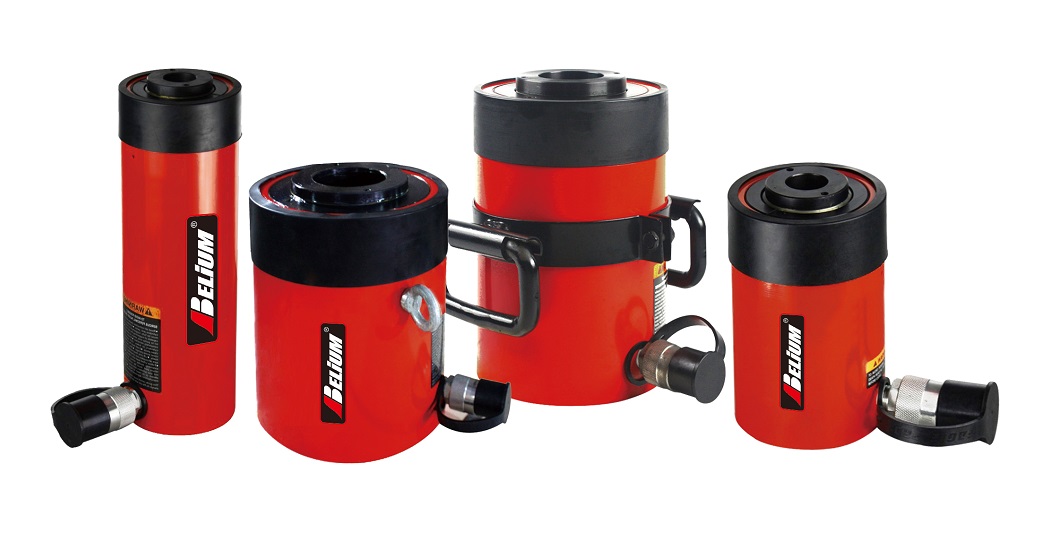

BMSH SERIES SINGLE ACTING, HOLLOW PISTON CYLINDER

Capacity: 13-100T   Max. Pressure: 700 Bar   Spring Return

The BMSH-series is a spring return hollow piston rod cylinder. The hollow piston allows for a rod or cable to be inserted through the entire body length. They can be used in tensioning, load testing and bush extracting and maintenance applications. All RHS-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance and a bronze overlay piston bearing area to reduce scoring and increase service life. All cylinders incorporate a bolt on removable steel base plate for extra protection.

  • Hollow piston design allows for both pulling and pushing forces.
  • Heavy-duty return springs provide quick retraction times.
  • Collar threads for easy fixturing.
  • Rugged, BC-201AFemale coupler with dust cover provided.
  • Complies with ASME B30.1 standards.
    • BMSH SERIES SINGLE ACTING, HOLLOW PISTON CYLINDER

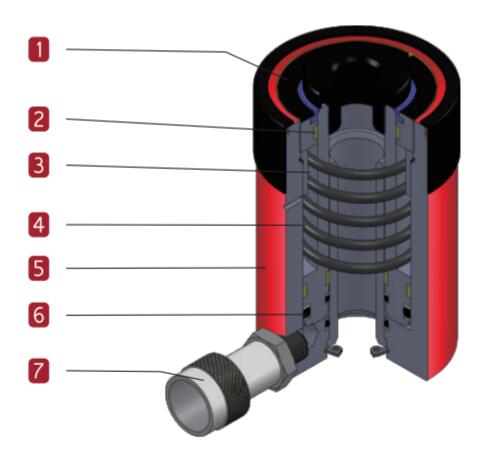

    Feature BMSH SERIES SINGLE ACTING, HOLLOW PISTON CYLINDER
    • 1. Hardened and chromed piston reduces wear and corrosion
    • 2. High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection
    • 3. Industrial U-cup style seal prevents costly leaks
    • 4. Standard coupler provided with dust cover
    • 5. Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads
    • 6. Heavy-duty wiper ring keeps dust and debris out of the cylinder body, improving perfomance and service life of the cylinder
    • 7. Heavy-duty, straight pull return springs provide quick retraction times

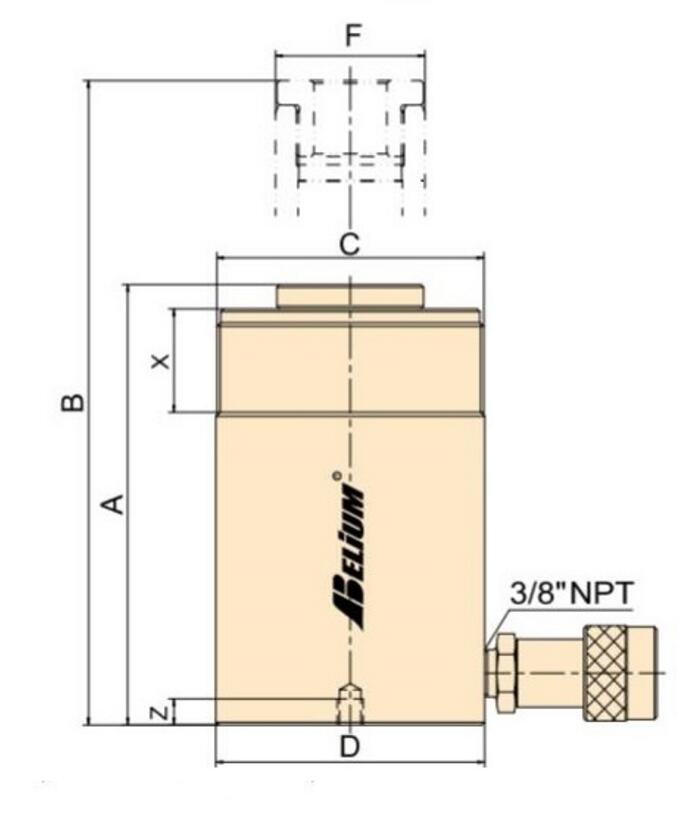

    Design of BMSH SERIES SINGLE ACTING, HOLLOW PISTON CYLINDER

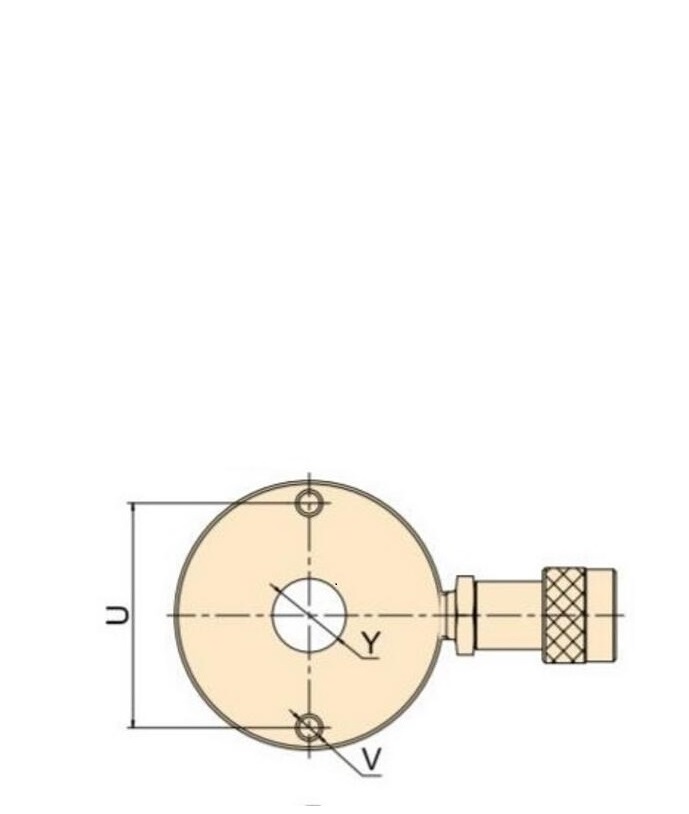

    Design of BMSH SERIES SINGLE ACTING, HOLLOW PISTON CYLINDER
    Optional Tilt Saddles:
    SADDLE MODEL NUMBER CYLINDER MODEL NUMBER SADDLE DIMENSIONS
    A B V D
    IN IN IN IN
    SH-2015 BMSH-202, 206 2.09 1 - 8UNC 0.35 1-9/16" - 16UN
    SH-3015 BMSH-302, 306 2.48 1-1/4 - 7UN 0.35 1-13/16" - 16UN
    SH-5016 BMSH-603, 606 3.58 1-5/8 - 5-1/2UN 0.47 2-3/4" - 16UN
    SH-10016 BMSH-1003 4.96 2-1/2 - 8UN 0.51 4" - 16UN
    MODEL CYLINDER CAPACITY
    @ 10,000 PSI (700 BAR)    		 STROKE CYLINDER
    EFFECTIVE AREA    		 OIL CAPACITY COLLAPSED HEIGHT EXTENDED HEIGHT COLLAR THREAD COLLAR THREAD LENGTH OUTSIDE DIAMETER PISTON DIAMETER PISTON THREAD LENGTH CENTER HOLE DIAMETER WEIGHT
    A B C X D F P Y
    METRIC TON (US TON) MM CM² CM³ MM MM in MM MM MM MM MM KG
    BMSH-120 13 (14.3) 8.00 18.40 14.70 55.00 63.00 2 3/4-16 30.00 70.00 35.00 16.00 19.60 1.70
    BMSH-121 42.00 18.40 77.30 120.00 162.00 2 3/4-16 30.00 70.00 35.00 - 19.60 3.00
    BMSH-123 76.00 18.40 140.00 184.00 260.00 2 3/4-16 30.00 70.00 35.00 - 19.60 4.70
    BMSH-202 20 (22) 49.00 32.80 161.00 162.00 211.00 3 7/8”-12 38.00 99.00 55.00 19 26.90 8.00
    BMSH-206 155.00 32.80 508.00 306.00 461.00 3 7/8”-12 38.00 99.00 55.00 19 26.90 14.50
    BMSH-302 30 (33) 64.00 48.00 307.00 179.00 242.00 4 1/2“-12 42.00 115.00 65.00 22 33.30 11.50
    BMSH-306 155.00 48.00 744.00 330.00 485.00 4 1/2“-12 42.00 115.00 65.00 22 33.30 23.00
    BMSH-603 60 (66) 76.00 87.40 664.00 247.00 322.00 6 1/4”-12 48.00 159.00 92.00 19 53.80 30.00
    BMSH-606 153.00 87.40 1,337.00 323.00 476.00 6 1/4”-12 48.00 159.00 92.00 19 53.80 37.50
    BMSH-1003 95 (104.5) 76.00 135.20 1,028.00 254.00 330.00 8 3/8“-12 60.00 212.00 127.00 25 79.00 62.00
