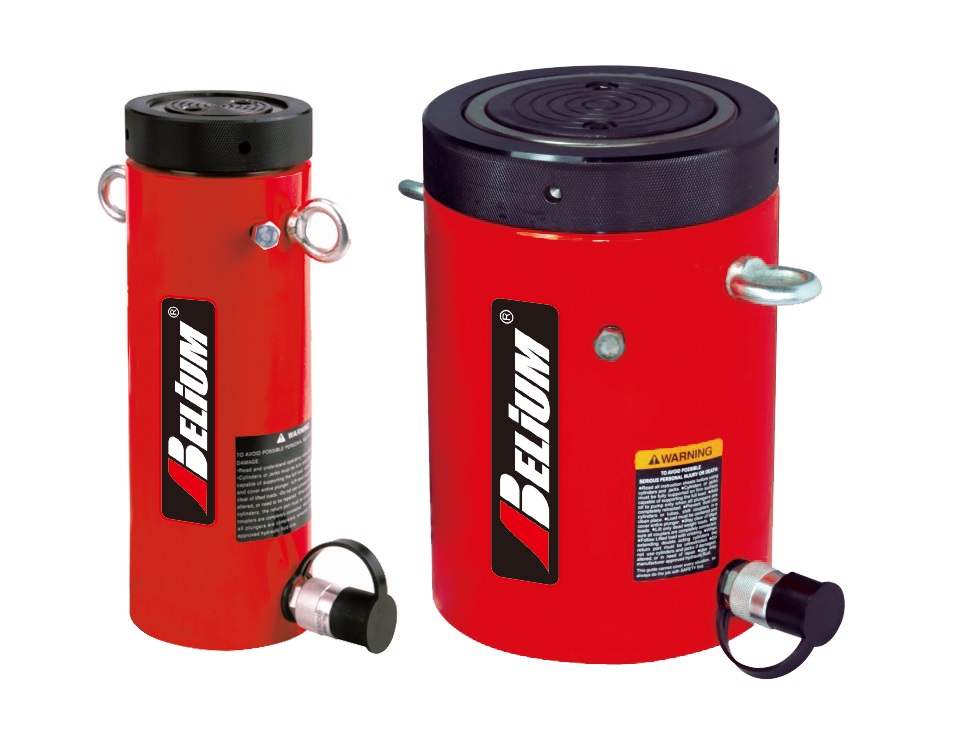

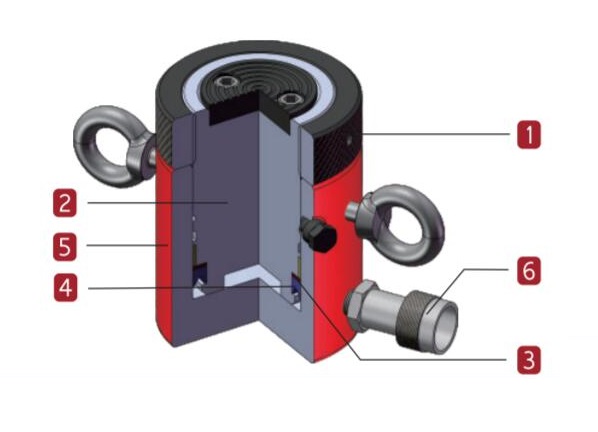

BML-series is a design that features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. These cylinders are ideally suited to bridge construction and maintenance and jacking applications requiring safe extended load holding. All BML-Series cylinders feature a hard chrome bore for maximum corrosion resistance and a special coating on the piston rod and lock ring to resist corrosion and abrasion. Hardened removable saddles are standard and tilt saddles are optional. An oil overflow port which restricts piston stroke is standard on all models.
| Saddle Model | Cylinder Cap. | Saddle Model | Cylinder Cap. |
|---|---|---|---|
| ton | ton | ||
| ST-100 | 50 | ST-400 | 400 |
| ST-100 | 100 | ST-500 | 500 |
| ST-200 | 150 | ST-600 | 600 |
| ST-200 | 200 | ST-800 | 800 |
| ST-250 | 250 | ST-1000 | 1000 |
| ST-300 | 300 |
| Model | Cylinder Capacity | Stroke | Cylinder Effective Area |
Oil Capacity | Collapsed Height |
Extended Height |
Lock Nut Thickness |
Outside Diameter |
Saddle Diameter |
Piston Diameter |
Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|

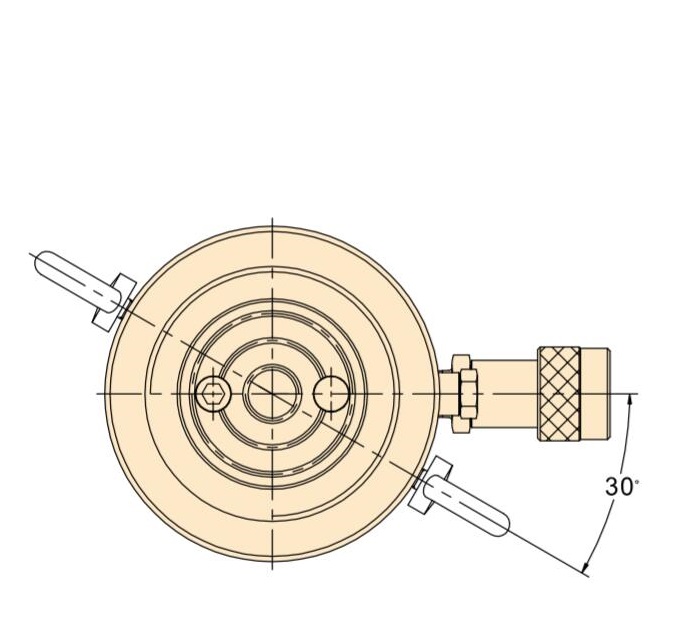

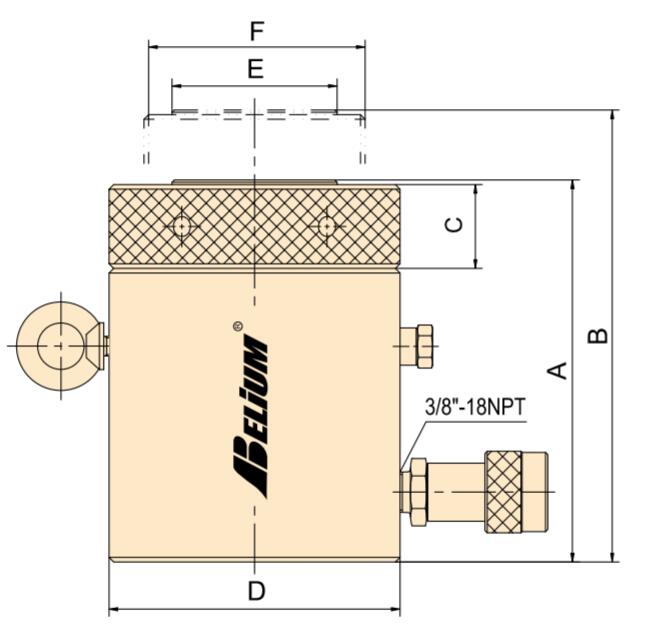

| A | B | C | D | E | F | ||||||
| Metric Ton | mm | CM² | CM³ | mm | mm | mm | mm | mm | mm | kg | |
| BML-502 | 50 (55) | 50.00 | 70.80 | 354.00 | 164.00 | 214.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 15.00 |
| BML-504 | 100.00 | 70.80 | 708.00 | 214.00 | 314.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 20.00 | |
| BML-506 | 150.00 | 70.80 | 1,062.00 | 264.00 | 414.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 25.00 | |
| BML-508 | 200.00 | 70.80 | 1,416.00 | 314.00 | 514.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 30.00 | |
| BML-5010 | 250.00 | 70.80 | 1,770.00 | 364.00 | 614.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 35.00 | |
| BML-5012 | 300.00 | 70.80 | 2,124.00 | 414.00 | 714.00 | 36.00 | 125.00 | 71.00 | Tr95×4 | 40.00 | |
| BML-1002 | 100 (105) | 50.00 | 132.70 | 663.50 | 187.00 | 237.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 30.00 |
| BML-1004 | 100.00 | 132.70 | 1,327.00 | 237.00 | 337.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 39.00 | |
| BML-1006 | 150.00 | 132.70 | 1,990.50 | 287.00 | 437.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 48.00 | |
| BML-1008 | 200.00 | 132.70 | 2,654.00 | 337.00 | 537.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 56.00 | |
| BML-10010 | 250.00 | 132.70 | 3,317.50 | 387.00 | 637.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 64.00 | |
| BML-10012 | 300.00 | 132.70 | 3,981.00 | 437.00 | 737.00 | 44.00 | 165.00 | 71.00 | Tr130×6 | 73.00 | |
| BML-1502 | 150 (155) | 50.00 | 201.00 | 1,005.00 | 209.00 | 259.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 53.00 |
| BML-1504 | 100.00 | 201.00 | 2,010.00 | 259.00 | 359.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 66.00 | |
| BML-1506 | 150.00 | 201.00 | 3,015.00 | 309.00 | 459.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 78.00 | |
| BML-1508 | 200.00 | 201.00 | 4,020.00 | 359.00 | 559.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 92.00 | |
| BML-15010 | 250.00 | 201.00 | 5,025.00 | 409.00 | 659.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 104.00 | |
| BML-15012 | 300.00 | 201.00 | 6,030.00 | 459.00 | 759.00 | 44.00 | 205.00 | 130.00 | Tr160×6 | 117.00 | |
| BML-2002 | 200 (220) | 50.00 | 268.80 | 1,417.00 | 243.00 | 293.00 | 50.00 | 235.00 | 130.00 | Tr160×6 | 83.00 |
| BML-2006 | 150.00 | 268.80 | 4,251.00 | 343.00 | 493.00 | 50.00 | 235.00 | 130.00 | Tr160×6 | 118.00 | |
| BML-20010 | 250.00 | 268.80 | 7,085.00 | 443.00 | 693.00 | 50.00 | 235.00 | 130.00 | Tr160×6 | 153.00 | |
| BML-2502 | 250 (275) | 50.00 | 362.90 | 1,814.50 | 249.00 | 299.00 | 56.00 | 275.00 | 150.00 | Tr215×6 | 116.00 |
| BML-2506 | 150.00 | 362.90 | 5,443.50 | 349.00 | 499.00 | 56.00 | 275.00 | 150.00 | Tr215×6 | 163.00 | |
| BML-25010 | 250.00 | 362.90 | 9,072.50 | 449.00 | 699.00 | 56.00 | 275.00 | 150.00 | Tr215×6 | 210.00 | |
| BML-3002 | 300 (330) | 50.00 | 452.20 | 2,261.00 | 295.00 | 345.00 | 60.00 | 310.00 | 139.00 | Tr240×6 | 173.00 |
| BML-3006 | 150.00 | 452.20 | 6,783.00 | 395.00 | 545.00 | 60.00 | 310.00 | 139.00 | Tr240×6 | 233.00 | |
| BML-30012 | 250.00 | 452.20 | 11305 | 495.00 | 745.00 | 60.00 | 310.00 | 139.00 | Tr240×6 | 293.00 | |
| BML-4002 | 400 (440) | 50.00 | 572.00 | 2,905.00 | 335.00 | 385.00 | 70.00 | 350.00 | 159.00 | Tr265×6 | 251.00 |
| BML-4006 | 150.00 | 572.00 | 8,715.00 | 435.00 | 585.00 | 70.00 | 350.00 | 159.00 | Tr265×6 | 327.00 | |
| BML-40012 | 250.00 | 572.00 | 14525 | 535.00 | 785.00 | 70.00 | 350.00 | 159.00 | Tr265×6 | 403.00 | |
| BML-5002 | 500 (550) | 50.00 | 730.20 | 3,651.00 | 375.00 | 425.00 | 80.00 | 400.00 | 179.00 | Tr305×6 | 367.00 |
| BML-5006 | 150.00 | 730.20 | 10953 | 475.00 | 625.00 | 80.00 | 400.00 | 179.00 | Tr305×6 | 467.00 | |
| BML-50012 | 250.00 | 730.20 | 18255 | 575.00 | 825.00 | 80.00 | 400.00 | 179.00 | Tr305×6 | 568.00 | |
| BML-6002 | 600 (660) | 50.00 | 854.90 | 4,274.50 | 395.00 | 445.00 | 85.00 | 430.00 | 194.00 | Tr330×6 | 447.00 |
| BML-6006 | 150.00 | 854.90 | 12823.5 | 495.00 | 645.00 | 85.00 | 430.00 | 194.00 | Tr330×6 | 563.00 | |
| BML-60012 | 250.00 | 854.90 | 21372.5 | 595.00 | 845.00 | 85.00 | 430.00 | 194.00 | Tr330×6 | 680.00 | |
| BML-8002 | 800 (880) | 50.00 | 1,163.60 | 5,818.00 | 455.00 | 505.00 | 100.00 | 505.00 | 224.00 | Tr385×6 | 711.00 |
| BML-8006 | 150.00 | 1,163.60 | 17454 | 555.00 | 705.00 | 100.00 | 505.00 | 224.00 | Tr385×6 | 871.00 | |
| BML-80012 | 250.00 | 1,163.60 | 29090 | 655.00 | 905.00 | 100.00 | 505.00 | 224.00 | Tr385×6 | 1,031.00 | |
| BML-10002 | 1000 (1100) | 50.00 | 1,451.50 | 7,257.50 | 495.00 | 545.00 | 110.00 | 560.00 | 249.00 | Tr430×6 | 951.00 |
| BML-10006 | 150.00 | 1,451.50 | 21772.5 | 595.00 | 745.00 | 110.00 | 560.00 | 249.00 | Tr430×6 | 1,143.00 | |
| BML-10012 | 250.00 | 1,451.50 | 36287.5 | 695.00 | 945.00 | 110.00 | 560.00 | 249.00 | Tr430×6 | 1,335.00 |
