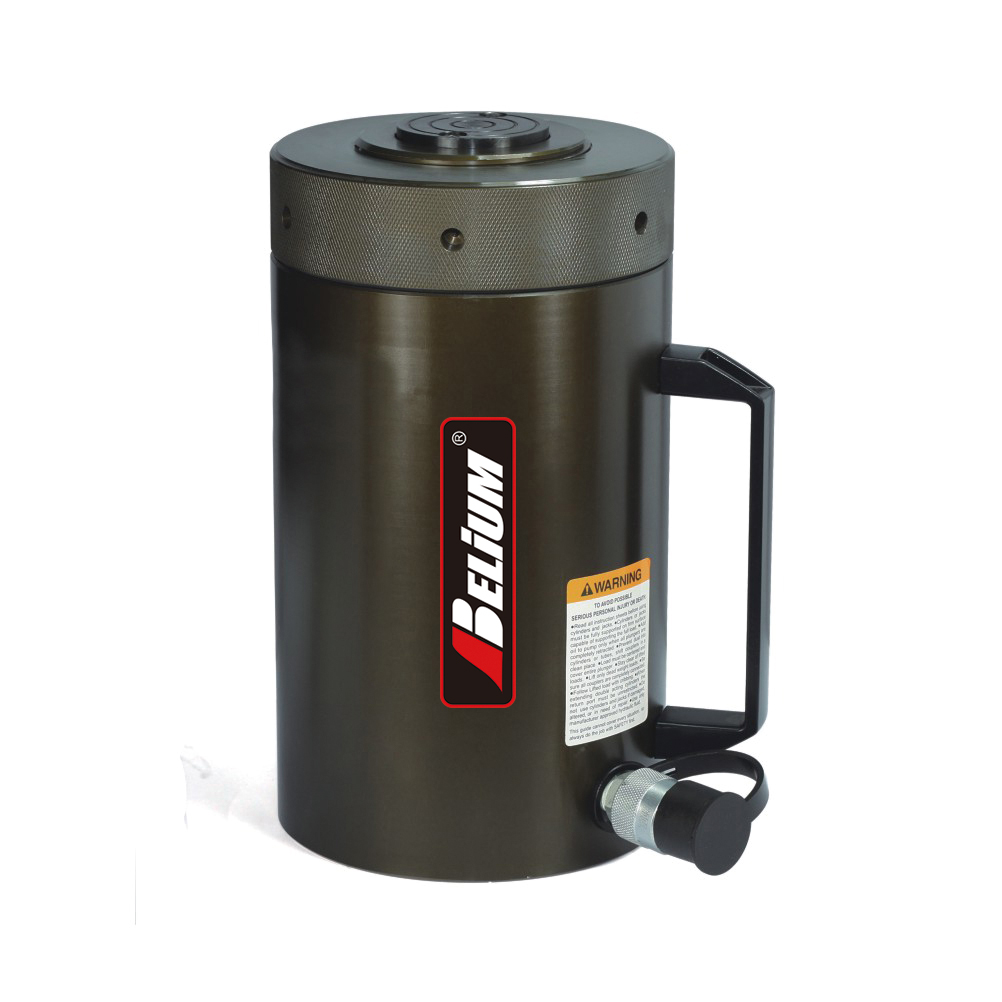

The BMLA series single acting high tonnage construction cylinders is ideally suited for construction, civil engineering, heavy fabrication and maintenance applications. All models are supplied with a tilting saddle fitted as standard and have an overstroke restrictor port to prevent over extension of the piston. Standard range models are featured in this catalogue, however additional capacities and stroke options are available on request

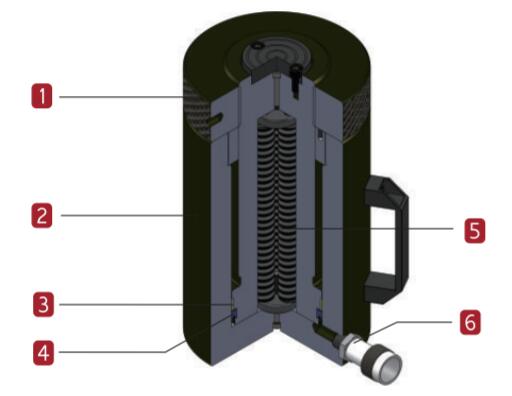

• 1. High strength mechanical lock ring provides positive load holding for extended periods
• 2. Aluminum alloy cylinder body anodized to protect against corrosion
• 3. High strength composite bearing provides support for off center loads without damaging the cylinder walls
• 4. Industrial U-cup style seal prevents costly leaks
• 5. Heavy-duty, straight pull return springs provide quick retraction times
• 6. Standard coupler provided with dust cover

• Light weight, easy to carry.
• High strength aluminum alloy treated to resist wear and corrosion.
• Heavy-duty, straight pull return springs provide quick retraction times.
• Composite bearing prevents metal to metal contact.
• Overflow port functions as a stroke limiter.
• Aluminum alloy lock nut for mechanical load holding.
• Handles included on all models.
• Rugged, BC-201A Female couplers with dust covers provided.
• Complies with ASME B30.1 standards.
