BHT-ST SERIES BOLT TENSIONERS

If the standard bot tensioners can not be suitable for your working condition, please contact us and our technical team will offer you a solution

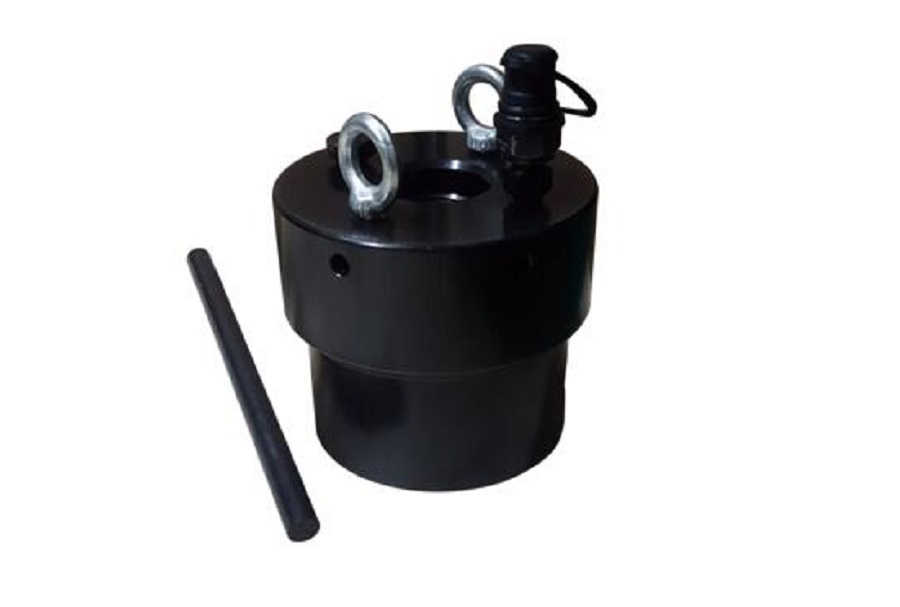

BHT-ST SERIES BOLT TENSIONERS

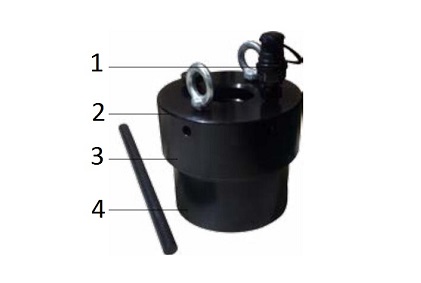

Features of BHT-ST SERIES BOLT TENSIONERS


  • 1. Convenient Quick Couple
  • 2. Suitable for single type Bolt tensioning
  • 3. Compact, low weight and high tension force
  • 4. Load return, simple structure, low cost
Design of BHT-ST SERIES BOLT TENSIONERS

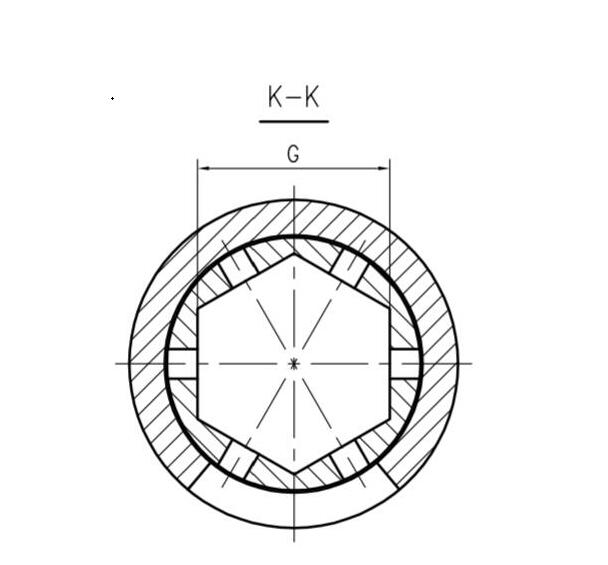

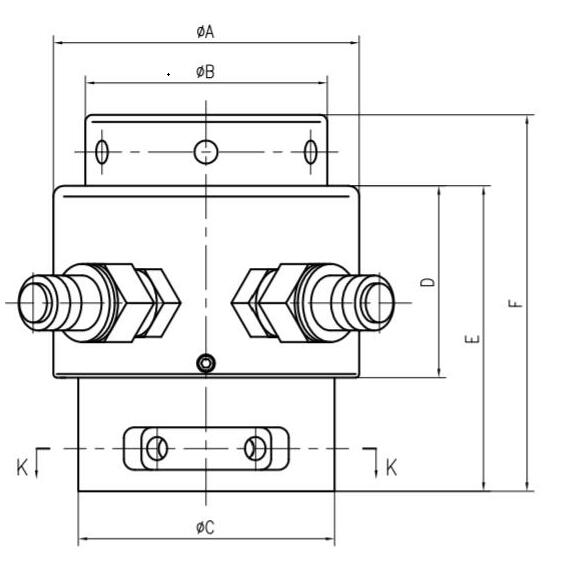

Design of BHT-ST SERIES BOLT TENSIONERS
Model Thread Max. Tension Force Effective Area A B C D< E F G Max. Stroke
kn mm2 mm mm mm mm mm mm mm mm
BHT-ST1 M24 282.00 1,885.00 86.00 68.00 68.00 54.00 83.00 103.00 37.00 8.00
M27 282.00 1,885.00 86.00 68.00 72.00 54.00 86.00 106.00 42.00 8.00
BHT-ST2 M24 452.00 3,016.00 112.00 92.00 75.00 60.00 89.00 111.00 37.00 10.00
M27 452.00 3,016.00 112.00 92.00 75.00 60.00 92.00 114.00 42.00 10.00
M30 452.00 3,016.00 112.00 92.00 80.00 60.00 95.00 117.00 47.00 10.00
M33 452.00 3,016.00 112.00 92.00 85.00 60.00 98.00 120.00 51.00 10.00
M36 452.00 3,016.00 112.00 92.00 90.00 60.00 101.00 123.00 56.00 10.00
BHT-ST3 M39 671.00 4,477.00 134.00 107.00 95.00 65.00 101.00 126.00 51.00 10.00
M42 671.00 4,477.00 134.00 107.00 100.00 65.00 104.00 129.00 56.00 10.00
M45 671.00 4,477.00 134.00 107.00 105.00 65.00 107.00 132.00 61.00 10.00
M48 671.00 4,477.00 134.00 107.00 110.00 65.00 111.00 135.00 66.00 10.00
BHT-ST4 M39 1,009.00 6,730.00 152.00 114.00 112.00 65.00 107.00 129.00 61.00 10.00
M42 1,009.00 6,730.00 152.00 114.00 115.00 65.00 110.00 132.00 66.00 10.00
M45 1,009.00 6,730.00 152.00 114.00 120.00 65.00 113.00 135.00 71.00 10.00
M48 1,009.00 6,730.00 152.00 114.00 125.00 65.00 116.00 138.00 76.00 10.00
M48 1,009.00 6,730.00 152.00 114.00 125.00 65.00 116.00 138.00 76.00 10.00
BHT-ST5 M52 1,538.00 10,254.00 195.00 147.00 148.00 69.00 123.00 155.00 81.00 10.00
M56 1,538.00 10,254.00 195.00 147.00 153.00 69.00 127.00 159.00 86.00 10.00
M60 1,538.00 10,254.00 195.00 147.00 158.00 69.00 131.00 163.00 91.00 10.00
M64 1,538.00 10,254.00 195.00 147.00 163.00 69.00 135.00 167.00 96.00 10.00
M68 1,538.00 10,254.00 195.00 147.00 168.00 69.00 139.00 171.00 101.00 10.00
BHT-ST6 M72 2,544.00 16,965.00 255.00 194.00 191.00 78.00 156.00 196.00 106.00 12.00
M76 2,544.00 16,965.00 255.00 194.00 196.00 78.00 160.00 200.00 111.00 12.00
M80 2,544.00 16,965.00 255.00 194.00 200.00 78.00 164.00 204.00 116.00 12.00
M85 2,544.00 16,965.00 255.00 194.00 204.00 78.00 169.00 209.00 121.00 12.00
M90 2,544.00 16,965.00 255.00 194.00 214.00 78.00 174.00 214.00 131.00 12.00
BHT-ST7 M90 3,216.00 21,441.00 280.00 213.00 225.00 82.00 175.00 209.00 131.00 12.00
M95 3,216.00 21,441.00 280.00 213.00 235.00 82.00 180.00 214.00 136.00 12.00
M100 3,216.00 21,441.00 280.00 213.00 245.00 82.00 186.00 220.00 146.00 12.00
