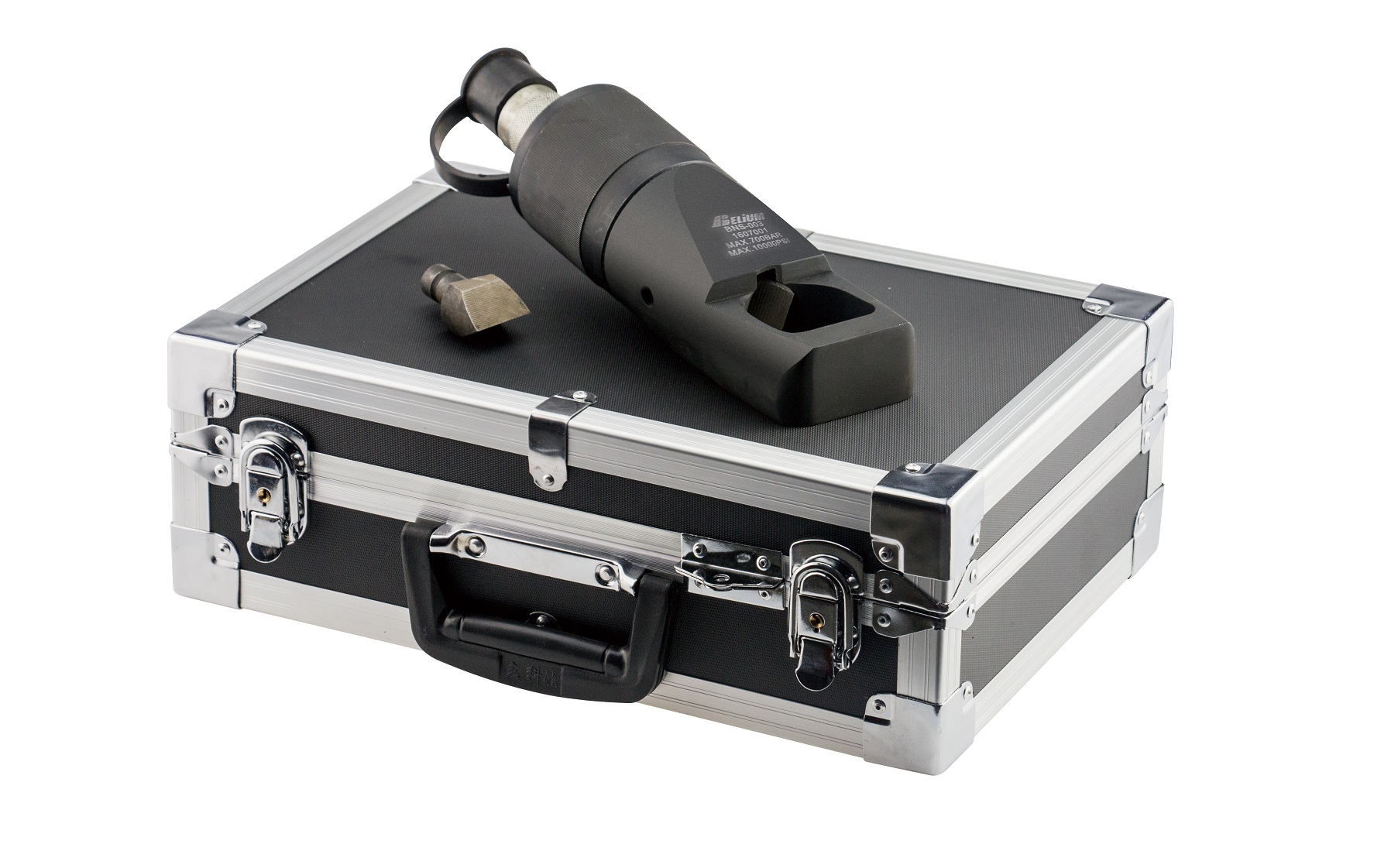

BNS SERIES NUT SPLITTERS

FEATURES AND BENEFITS:
  • 1. Compact and easy to use
  • 2. Single acting, spring return cylinder for fast blade retraction
  • 3. Easy to replace blade
  • 4. Angled head design for increased clearance
BNS SERIES NUT SPLITTERS

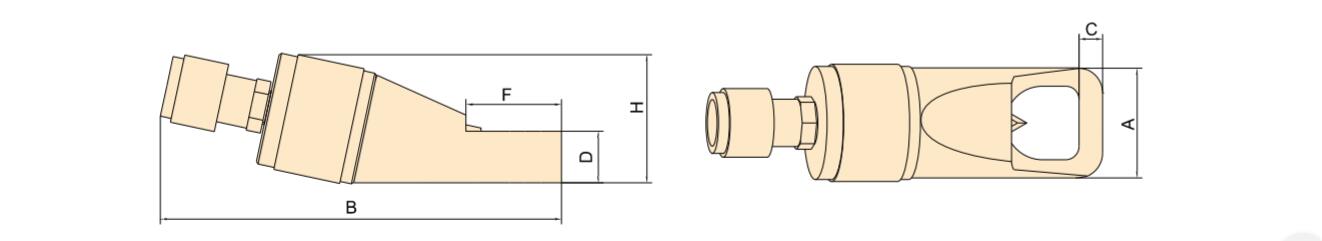

Design of BNS SERIES NUT SPLITTERS
Model Hex Nut Range Bolt Range Capacity Oil Capacity Dimensions Weight
A B C D E F
mm mm ton CM³ mm mm mm mm mm mm kg
BNS-001 12-19 M8-M12 5 15 40 190 10.5 19 30 48 1.2
BNS-002 19-24 M12-M16 10 20 53 215 12.5 25 42 62 2
BNS-003 27-34 M18-M22 15 60 66 245 15.5 30 54 80 3.2
BNS-004 35-41 M22-M27 20 80 75 285 17 36 66 92 5
BNS-005 46-51 M27-M33 35 155 93 340 25 43 80 110 9
BNS-006 51-60 M33-M39 50 240 106 370 26.5 52 98 128 13.9
BNS-007 60-75 M39-M48 90 492 156 450 35 70 117 190 35
