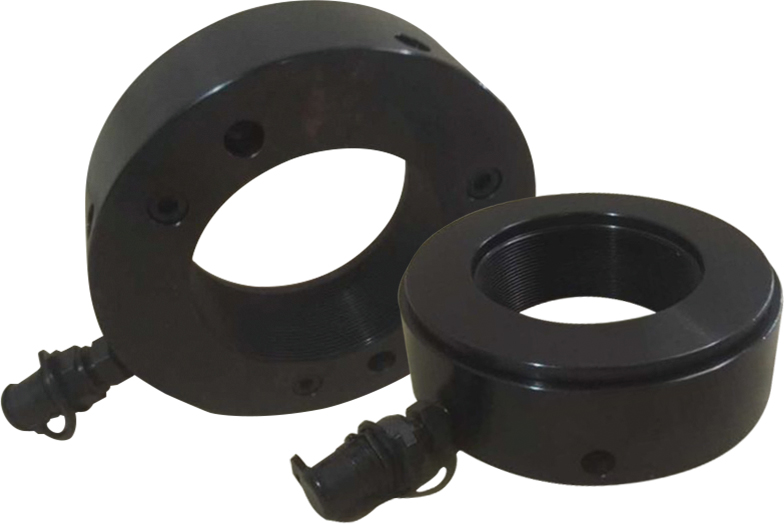

Commonly used in bearings, flywheels, propellers and other workpiece presses hydraulic tools. With the resulting top thrust is smooth, no impact, the process does not hurt the workpiece and other characteristics. Through the hydraulic nut inner thread, which can be installed in the shaft parts, the piston under the action of 700bar hydraulic pressure to push the workpiece to the installation position.

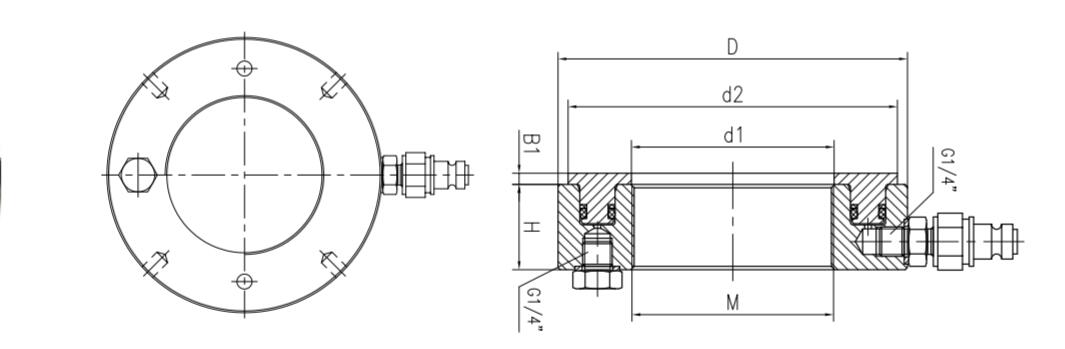

| MODEL | THREAD | DIA. D |
DIA. d1 |
DIA.| HEIGHT |
B1 |
STROKE< |
EFFECTIVE AREA |
WEIGHT> |
|
|---|---|---|---|---|---|---|---|---|---|
| m | mm | mm | mm | mm | mm | mm | mm2 | kg | |
| BHNM50 | M50x1.5 | 114.0 | 50.5 | 104.0 | 38.0 | 4.0 | 5.0 | 3376.0 | 2.7 |
| BHNM60 | M60x2 | 125.0 | 60.5 | 115.0 | 38.0 | 5.0 | 5.0 | 4239.0 | 2.8 |
| BHNM70 | M70x2 | 135.0 | 70.5 | 127.0 | 38.0 | 5.0 | 5.0 | 4710.0 | 3.2 |
| BHNM80 | M80x2 | 146.0 | 80.5 | 137.0 | 38.0 | 5.0 | 5.0 | 5181.0 | 3.7 |
| BHNM90 | M90x2 | 156.0 | 90.5 | 147.0 | 38.0 | 5.0 | 5.0 | 5652.0 | 4.0 |
| BHNM100 | M100x2 | 166.0 | 100.5 | 158.0 | 38.0 | 6.0 | 5.0 | 5987.0 | 4.4 |
| BHNM110 | M110x2 | 178.0 | 110.5 | 169.0 | 38.0 | 6.0 | 5.0 | 6286.0 | 5.0 |
| BHNM120 | M120x2 | 188.0 | 120.5 | 179.0 | 38.0 | 6.0 | 5.0 | 8568.0 | 5.3 |
| BHNM130 | M130x2 | 198.0 | 130.5 | 190.0 | 38.0 | 6.0 | 5.0 | 7165.0 | 5.7 |
| BHNM140 | M140x2 | 208.0 | 140.5 | 200.0 | 39.0 | 7.0 | 5.0 | 7605.0 | 6.0 |
| BHNM150 | M150x2 | 220.0 | 150.5 | 211.0 | 39.0 | 7.0 | 6.0 | 7736.0 | 6.6 |
| BHNM160 | M160x3 | 232.0 | 160.5 | 224.0 | 40.0 | 7.0 | 6.0 | 8002.0 | 7.6 |
| BHNM170 | M170x3 | 244.0 | 170.5 | 235.0 | 41.0 | 7.0 | 6.0 | 8669.0 | 8.4 |
| BHNM190 | M190x3 | 270.0 | 191.0 | 259.0 | 42.0 | 8.0 | 8.0 | 9266.0 | 10.5 |
| BHNM200 | M200x3 | 282.0 | 201.0 | 271.0 | 43.0 | 8.0 | 8.0 | 8612.0 | 11.5 |
| BHNM210 | Tr210x4 | 294.0 | 212.0 | 282.0 | 44.0 | 8.0 | 9.0 | 11728.0 | 12.5 |
| BHNM220 | Tr220x4 | 306.0 | 222.0 | 293.0 | 44.0 | 8.0 | 9.0 | 11815.0 | 13.5 |
| BHNM230 | Tr230x4 | 318.0 | 232.0 | 305.0 | 45.0 | 8.0 | 9.0 | 12270.0 | 15.0 |
| BHNM250 | Tr250x4 | 342.0 | 252.0 | 329.0 | 46.0 | 9.0 | 10.0 | 13317.0 | 17.0 |
| BHNM280 | Tr280x4 | 380.0 | 282.0 | 363.0 | 49.0 | 9.0 | 12.0 | 14683.0 | 22.0 |
| BHNM300 | Tr300x4 | 404.0 | 302.0 | 386.0 | 51.0 | 10.0 | 13.0 | 15640.0 | 25.0 |
| BHNM400 | Tr400x4 | 522.0 | 402.0 | 499.0 | 60.0 | 11.0 | 17.0 | 20602.0 | 45.5 |
| BHNM500 | Tr500x4 | 636.0 | 502.0 | 609.0 | 67.0 | 12.0 | 19.0 | 24337.0 | 70.0 |
| BHNM600 | Tr600x4 | 748.0 | 602.0 | 721.0 | 73.0 | 13.0 | 23.0 | 28274.0 | 100.0 |
| BHNM710 | Tr710x4 | 870.0 | 712.0 | 840.0 | 78.0 | 15.0 | 25.0 | 30730.0 | 135.0 |
| BHNM800 | Tr800x4 | 965.0 | 802.0 | 936.0 | 80.0 | 16.0 | 25.0 | 31770.0 | 161.0 |
| BHNM900 | Tr900x4 | 1075.0 | 902.0 | 1043.0 | 86.0 | 17.0 | 30.0 | 32848.0 | 205.0 |
