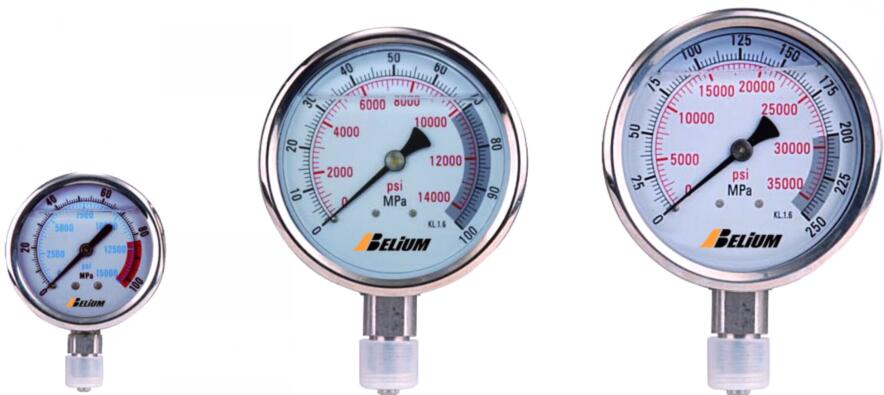

BG SERIES PRESSURE GAUGES

FEATURES AND BENEFITS:
  • 1. Fast and easy to install.
  • 2. Made of corrosion resistant stainless steel.
  • 3. Asesimatic - not affected by motion.
  • 4. Calibrated with dual scale reading for Mpa and PSI.
  • 5. Class one gauges, accuracy, +/- 1%.
BG SERIES PRESSURE GAUGES
Model Pressure Range Thread Guage Diameter
MPa Psi mm
BG-2510 0-100 0-15000 1/4 NPT 63.5
BG-4010 0-100 0-15000 1/2 NPT 101.6
BG-4016 0-160 0-23000 M20×1.5 101.6
