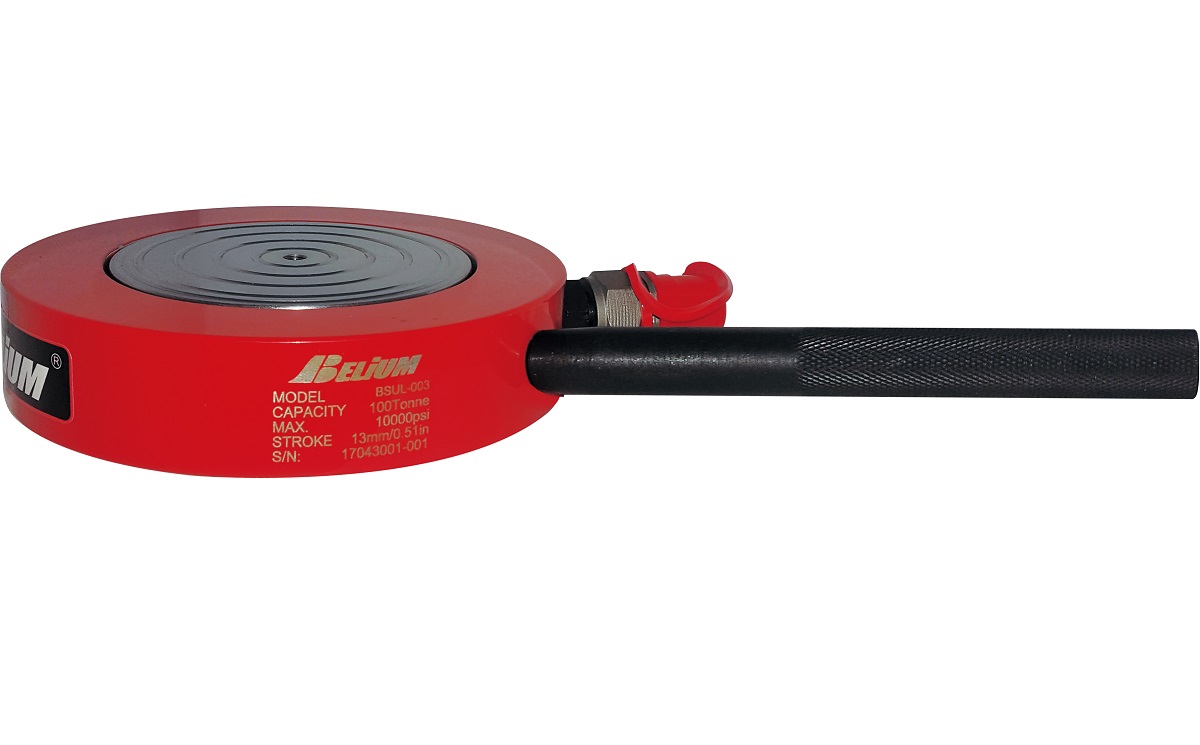

BSUL SERIES ULTRA LOW HEIGHT HYDRAULIC CYLINDER

Capacity: 56-207T   Max. Pressure: 1500 Bar   Load Return

  • 1. Thin cylinder body, narrow space usage
  • 2. Cylinder, small size, light weight
  • 3. Cylinder are single acting, load return
  • 4. Cylinder surface after special treatment, suitable for harsh environments
  • 5. Cylinder are equipped with a G1/4'' quick-change connectors, easy to use
BSUL SERIES ULTRA LOW HEIGHT HYDRAULIC CYLINDER

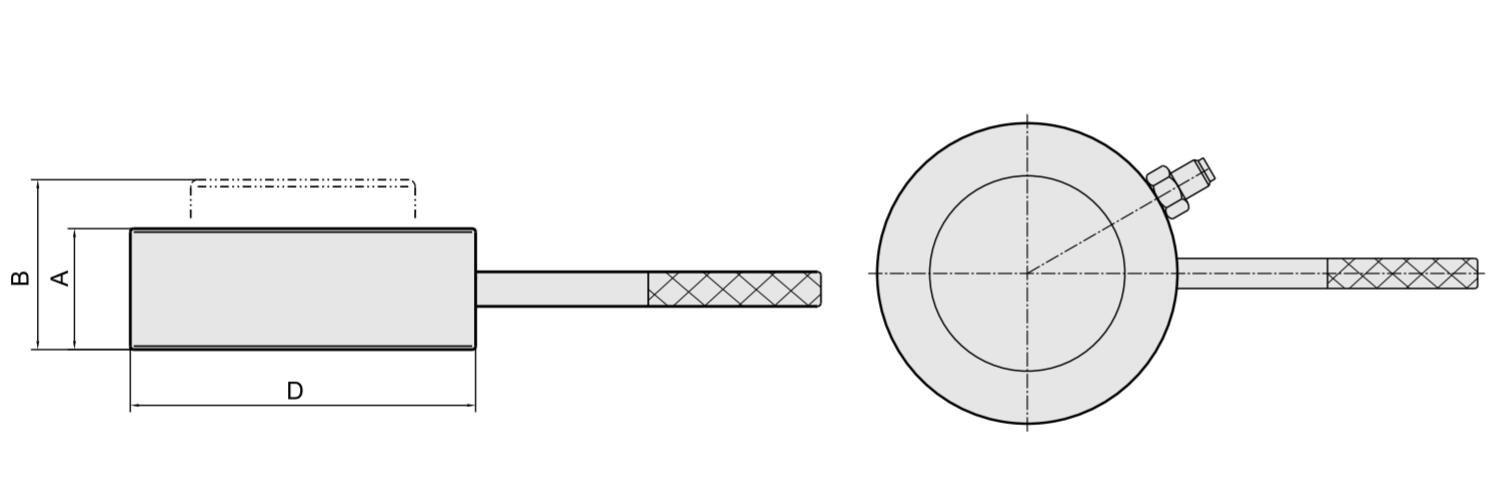

Design of BSUL SERIES ULTRA LOW HEIGHT HYDRAULIC CYLINDER
MODEL
 CYLINDER CAPACITY
@ 10,000 PSI (700 BAR)		 STROKE OIL CAPACITY COLLAPSED HEIGHT EXTENDED HEIGHT OUTSIDE DIAMETER Balance Angle WEIGHT
A B D
METRIC TON (US TON) MM CM³ MM MM MM KG
BSUL001 56 13 0.037 30 43 128 3 3
BSUL002 56 18 0.051 35 53 56 3 3.6
BSUL003 100 13 0.066 30 43 100 3 4
BSUL004 100 18 0.091 35 53 100 3 4.8
BSUL005 150 13 0.102 30 43 150 3 5.3
BSUL006 150 18 0.141 35 53 150 3 6.2
BSUL007 207 13 0.135 30 43 207 3 6.4
BSUL008 207 18 0.187 35 53 207 3 7.5
