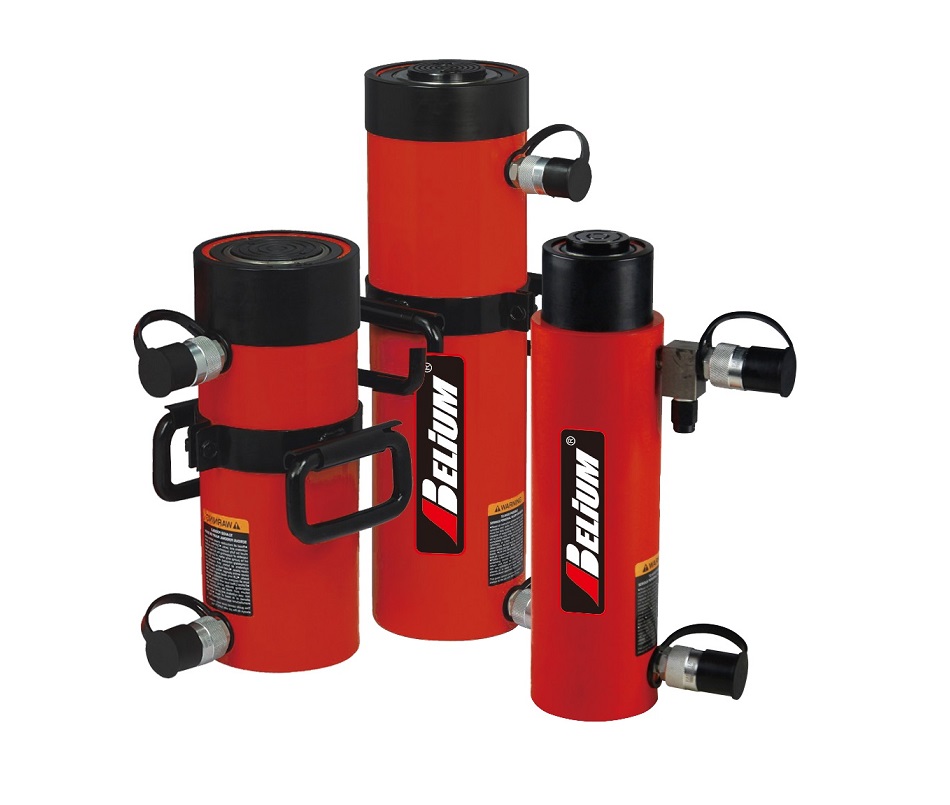

BMD SERIES DOUBLE ACTING CYLINDER

Capacity: 10-300T    Max. Pressure: 700 Bar    Hydraulic Return

All BMD-Series cylinders can be used in high working cycle applications and are perfect for bridge lifting, hydraulic presses, and construction and maintenance applications. Cylinder body mounting threads and base mounting holes on most models allow greater mounting flexibility. All cylinders have a hard chrome piston rod, bronze overlay on the piston bearing area and retract side safety pressure relief valves to ensure long term, trouble free performance

BMD SERIES DOUBLE ACTING CYLINDER
BMD SERIES DOUBLE ACTING CYLINDER

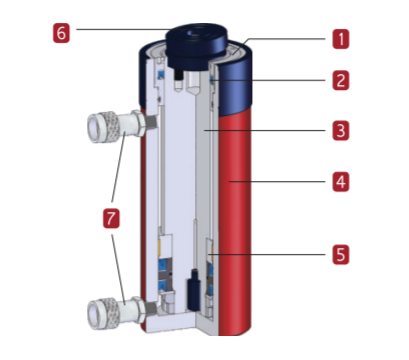

  • 1. Hardened alloy steel guide ring elimates over travel and provides support to reduce wear from off center loads
  • 2. Industrial U-cup style seal prevents costly leaks
  • 3. Standard coupler provided with dust cover
  • 4. High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection
  • 5. Industrial U-cup style seal prevents costly leaks
  • 6. Hardened and chromed piston reduces wear and corrosion
  • 7. High strength composite bearing provides support for off center loads without damaging the cylinder walls

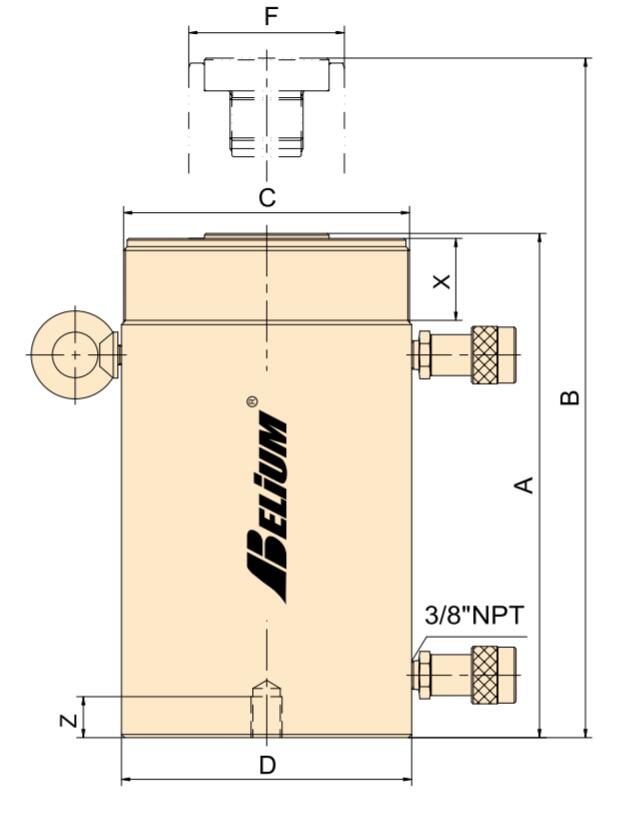

Design of BMD SERIES DOUBLE ACTING CYLINDER

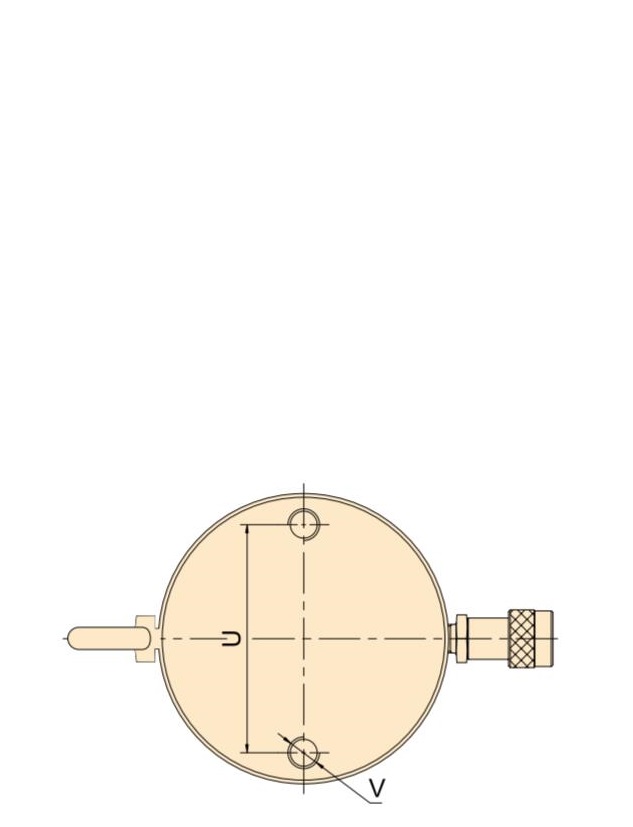

Design of BMD SERIES DOUBLE ACTING CYLINDER
Optional Tilt Saddles:
Saddle Model Number Cylinder Model Number
ST-50 BMD-308, 3014
ST-100 ST-100 BMD-506, 5013, 5020, 756, 7513
MODEL CYLINDER CAPACITY
@ 10,000 PSI (700 BAR)		 STROKE MAX. CYLINDER CAPACITY CYLINDER EFFECTIVE AREA OIL CAPACITY COLLAPSED HEIGHT EXTENDED HEIGHT OUTSIDE DIAMETER PISTON DIAMETER WEIGHT
ADVANCE RETRACT ADVANCE RETRACT ADVANCE RETRACT
A B D F
METRIC TON (US TON) IN Metric Ton Metric Ton CM² CM² CM³ CM³ MM MM MM MM KG
BMD-1010 10 (11) 254.00 10 3 14.50 4.90 369.00 124.50 409.00 663.00 73.00 35.00 12.00
BMD-1012 305.00 10 3 14.50 4.90 443.00 149.50 457.00 762.00 73.00 35.00 14.00
BMD-308 30 (33) 209.00 31 6 44.20 20.40 923.80 426.40 387.00 596.00 102.00 55.00 18.00
BMD-3014 368.00 31 6 44.20 20.40 1,626.60 769.00 549.00 917.00 102.00 55.00 29.00
BMD-506 50 (55) 156.00 49 14 70.80 20.60 1,104.50 321.40 331.00 487.00 127.00 80.00 30.00
BMD-5013 334.00 49 14 70.80 20.60 2,364.70 688.00 509.00 843.00 127.00 80.00 52.00
BMD-5020 511.00 49 14 70.80 20.60 3,617.90 1,052.70 733.00 1,244.00 127.00 80.00 68
BMD-756 75 (82.5) 156.00 73 23 103.80 33.00 1,619.30 514.80 347.00 503.00 146.00 95.00 41.00
BMD-7513 333.00 73 23 103.80 33.00 3,456.50 1,098.90 525.00 858.00 146.00 95.00 68.00
BMD-1006 95 (104.5) 168.00 91 43 132.70 61.80 2,229.40 1,038.20 357.00 525.00 177.00 95.00 61
BMD-10013 333.00 91 43 132.70 61.80 4,418.90 2,057.90 524.00 857.00 177.00 95.00 93
BMD-10018 460.00 91 43 132.70 61.80 6,104.20 2,842.80 687.00 1,147.00 177.00 95.00 117
BMD-1502 140 (154) 57.00 140 68 201.00 97.10 1,145.70 553.50 196.00 253.00 204.00 115.00 49.00
BMD-1506 156.00 140 68 201.00 97.10 3,135.60 1,514.80 385.00 541.00 204.00 115.00 93
BMD-15013 333.00 140 68 201.00 97.10 6,693.30 3,233.40 582.00 915.00 204.00 115.00 124
BMD-2006 200 (220) 152.00 198 98 283.40 140.30 5,526.30 2,132.60 430.00 582.00 247.00 135.00 147
BMD-20013 330.00 198 98 283.40 140.30 11998.00 4,629.90 608.00 938.00 247.00 135.00 199
BMD-3006 300 (330) 153.00 316 164 452.20 238.40 6,918.70 3,647.50 485.00 638.00 311.00 165.00 200
