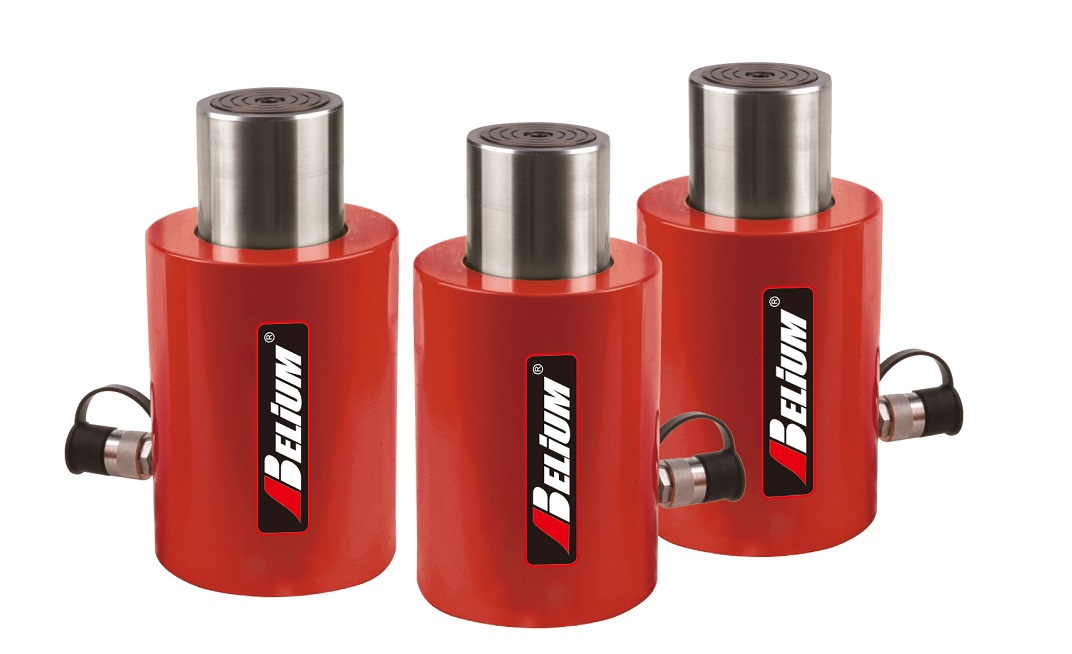

The BMSX series single acting high tonnage construction cylinders is ideally suited for construction, civil engineering, heavy fabrication and maintenance applications. All models are supplied with a tilting saddle fitted as standard and have an overstroke restrictor port to prevent over extension of the piston. Standard range models are featured in this catalogue, however additional capacities and stroke options are available on request.
| Cylinder Model | Saddle Model | Saddle Size | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| mm | mm | mm | mm | mm | ||
| BMSX-50T/BMDX-50T | STX-50 | 49 | 24 | 43 | 39 | 49 |
| BMSX-100T/BMDX-100T | STX-100 | 73 | 29 | 48 | 55 | 74 |
| BMSX-150T/BMDX-150T | STX-150 | 91 | 31 | 50 | 74 | 94 |
| BMSX-200T/BMDX-200T | STX-200 | 118 | 35 | 59 | 90 | 113 |
| BMSX-250T/BMDX-250T | STX-250 | 144 | 46 | 70 | 120 | 145 |
| BMSX-300T/BMDX-300T | STX-300 | 158 | 62 | 81 | 150 | 177 |
| BMSX-400T/BMDX-400T | STX-400 | 193 | 51 | 78 | 170 | 196 |
| BMSX-500T/BMDX-500T | STX-500 | 228 | 63 | 90 | 200 | 228 |
| BMSX-600T/BMDX-600T | STX-600 | 241 | 76 | 103 | 220 | 247 |
| BMSX-800T/BMDX-800T | STX-800 | 297 | 75 | 102 | 260 | 297 |
| BMSX-1000T/BMDX-1000T | STX-1000 | 311 | 93 | 120 | 295 | 323 |

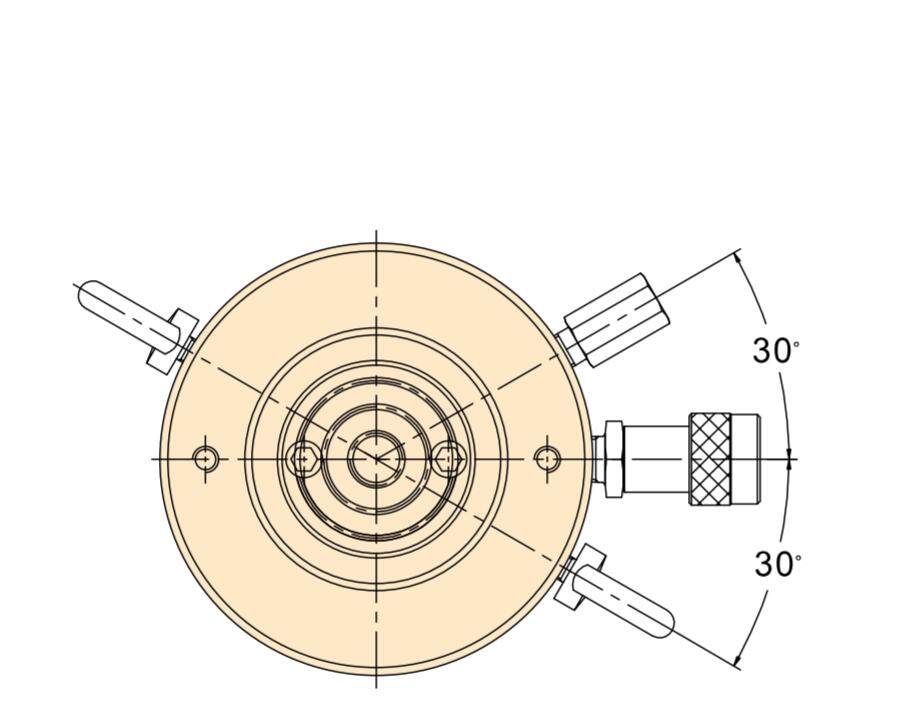

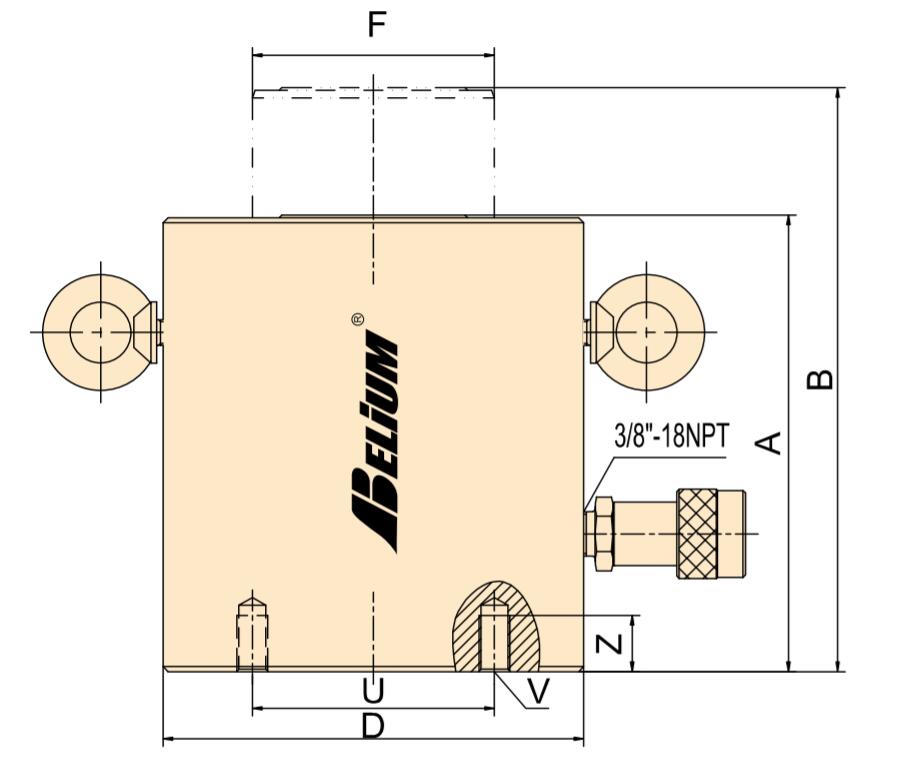

| Model | Cylinder Capacity | Stroke | Cylinder Effective Area |
Oil Capacity | Collapsed Height |
Extended Height |
Outside Diameter |
Piston Diameter |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| A | B | D | F | ||||||
| Metric Ton | mm | CM² | CM³ | mm | mm | mm | mm | kg | |
| BMSX-502 | 50 (55) | 50.00 | 75.40 | 36.90 | 162.00 | 212.00 | 130.00 | 70.00 | 17.00 |
| BMSX-504 | 50 (55) | 100.00 | 75.40 | 36.90 | 212.00 | 312.00 | 130.00 | 70.00 | 20.00 |
| BMSX-506 | 50 (55) | 150.00 | 75.40 | 36.90 | 262.00 | 412.00 | 130.00 | 70.00 | 23.00 |
| BMSX-508 | 50 (55) | 200.00 | 75.40 | 36.90 | 312.00 | 512.00 | 130.00 | 70.00 | 27.00 |
| BMSX-5010 | 50 (55) | 250.00 | 75.40 | 36.90 | 362.00 | 612.00 | 130.00 | 70.00 | 31.00 |
| BMSX-5012 | 50 (55) | 300.00 | 75.40 | 36.90 | 412.00 | 712.00 | 130.00 | 70.00 | 34.00 |
| BMSX-1002 | 100 (105) | 50.00 | 132.50 | 664.00 | 182.00 | 232.00 | 165.00 | 95.00 | 28.00 |
| BMSX-1004 | 100 (105) | 100.00 | 132.50 | 1,327.00 | 232.00 | 332.00 | 165.00 | 95.00 | 33.00 |
| BMSX-1006 | 100 (105) | 150.00 | 132.50 | 1,991.00 | 282.00 | 432.00 | 165.00 | 95.00 | 40.00 |
| BMSX-1008 | 100 (105) | 200.00 | 132.50 | 2,655.00 | 332.00 | 532.00 | 165.00 | 95.00 | 50.00 |
| BMSX-10010 | 100 (105) | 250.00 | 132.50 | 3,318.00 | 382.00 | 632.00 | 165.00 | 95.00 | 61.00 |
| BMSX-10012 | 100 (105) | 300.00 | 132.50 | 3,982.00 | 432.00 | 732.00 | 165.00 | 95.00 | 71.00 |
| BMSX-1502 | 150 (155) | 50.00 | 202.50 | 1,010.00 | 196.00 | 246.00 | 205.00 | 115.00 | 39.00 |
| BMSX-1504 | 150 (155) | 100.00 | 202.50 | 2,020.00 | 246.00 | 346.00 | 205.00 | 115.00 | 52.00 |
| BMSX-1506 | 150 (155) | 150.00 | 202.50 | 3,028.00 | 296.00 | 446.00 | 205.00 | 115.00 | 65.00 |
| BMSX-1508 | 150 (155) | 200.00 | 202.50 | 4,038.00 | 346.00 | 546.00 | 205.00 | 115.00 | 78.00 |
| BMSX-15010 | 150 (155) | 250.00 | 202.50 | 5,048.00 | 396.00 | 646.00 | 205.00 | 115.00 | 92.00 |
| BMSX-15012 | 150 (155) | 300.00 | 202.50 | 6,058.00 | 446.00 | 746.00 | 205.00 | 115.00 | 105.00 |
| BMSX-2002 | 200 (220) | 50.00 | 266.00 | 1,330.00 | 216.00 | 266.00 | 235.00 | 135.00 | 55.00 |
| BMSX-2006 | 200 (220) | 150.00 | 266.00 | 3,989.00 | 316.00 | 466.00 | 235.00 | 135.00 | 91.00 |
| BMSX-20012 | 200 (220) | 300.00 | 266.00 | 7,977.00 | 466.00 | 766.00 | 235.00 | 135.00 | 146.00 |
| BMSX-2502 | 250 (275) | 50.00 | 362.70 | 1,813.00 | 235.00 | 285.00 | 275.00 | 165.00 | 89.00 |
| BMSX-2506 | 250 (275) | 150.00 | 362.70 | 5,442.00 | 335.00 | 485.00 | 275.00 | 165.00 | 136.00 |
| BMSX-25012 | 250 (275) | 300.00 | 362.70 | 10,883.00 | 485.00 | 785.00 | 275.00 | 165.00 | 207.00 |
| BMSX-3002 | 300 (330) | 50.00 | 452.00 | 2,262.00 | 312.00 | 362.00 | 310.00 | 200.00 | 184.00 |
| BMSX-3006 | 300 (330) | 150.00 | 452.00 | 6,786.00 | 412.00 | 562.00 | 310.00 | 200.00 | 232.00 |
| BMSX-30012 | 300 (330) | 300.00 | 452.00 | 13,571.00 | 562.00 | 862.00 | 310.00 | 200.00 | 303.00 |
| BMSX-4002 | 400 (440) | 50.00 | 572.00 | 2,860.00 | 375.00 | 425.00 | 350.00 | 215.00 | 270.00 |
| BMSX-4006 | 400 (440) | 150.00 | 572.00 | 8,580.00 | 475.00 | 625.00 | 350.00 | 215.00 | 330.00 |
| BMSX-40012 | 400 (440) | 300.00 | 572.00 | 17,230.00 | 625.00 | 925.00 | 350.00 | 215.00 | 421.00 |
| BMSX-5002 | 500 (550) | 50.00 | 730.60 | 3,653.00 | 419.00 | 469.00 | 400.00 | 250.00 | 401.00 |
| BMSX-5006 | 500 (550) | 150.00 | 730.60 | 10,959.00 | 519.00 | 669.00 | 400.00 | 250.00 | 480.00 |
| BMSX-50012 | 500 (550) | 300.00 | 730.60 | 21,918.00 | 669.00 | 969.00 | 400.00 | 250.00 | 599.00 |
| BMSX-6002 | 600 (660) | 50.00 | 855.30 | 4,276.00 | 429.00 | 479.00 | 430.00 | 270.00 | 474.00 |
| BMSX-6006 | 600 (660) | 150.00 | 855.30 | 12,829.00 | 529.00 | 679.00 | 430.00 | 270.00 | 565.00 |
| BMSX-60012 | 600 (660) | 300.00 | 855.30 | 25,659.00 | 679.00 | 979.00 | 430.00 | 270.00 | 701.00 |
| BMSX-8002 | 800 (880) | 50.00 | 1,163.00 | 5,816.00 | 474.00 | 524.00 | 505.00 | 320.00 | 741.00 |
| BMSX-8006 | 800 (880) | 150.00 | 1,163.00 | 17,450.00 | 574.00 | 724.00 | 505.00 | 320.00 | 868.00 |
| BMSX-80012 | 800 (880) | 300.00 | 1,163.00 | 34,900.00 | 724.00 | 1,024.00 | 505.00 | 320.00 | 1,058.00 |
| BMSX-10002 | 1000 (1100) | 50.00 | 1,450.00 | 7,255.00 | 564.00 | 614.00 | 560.00 | 345.00 | 1,062.00 |
| BMSX-10006 | 1000 (1100) | 150.00 | 1,450.00 | 21,766.00 | 664.00 | 814.00 | 560.00 | 345.00 | 1,213.00 |
| BMSX-10012 | 1000 (1100) | 300.00 | 1,450.00 | 43,532.00 | 814.00 | 1,114.00 | 560.00 | 345.00 | 1,439.00 |
