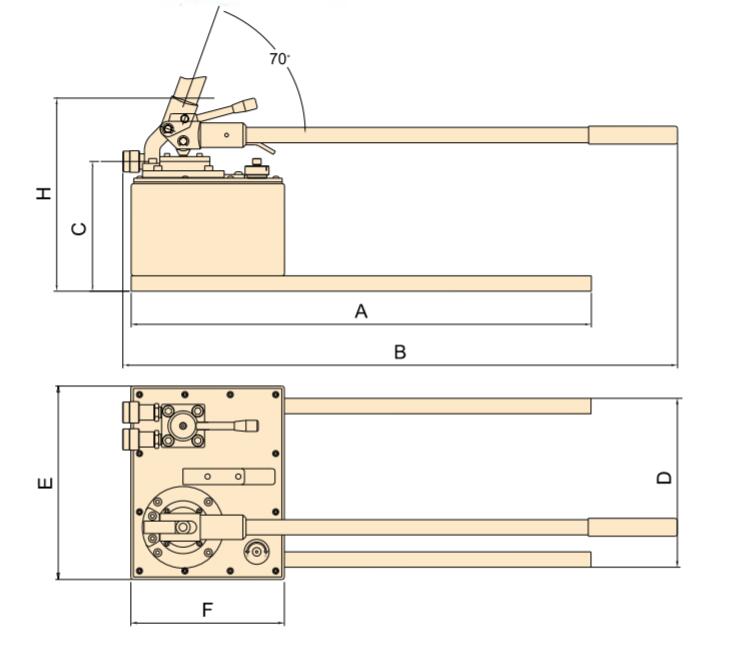

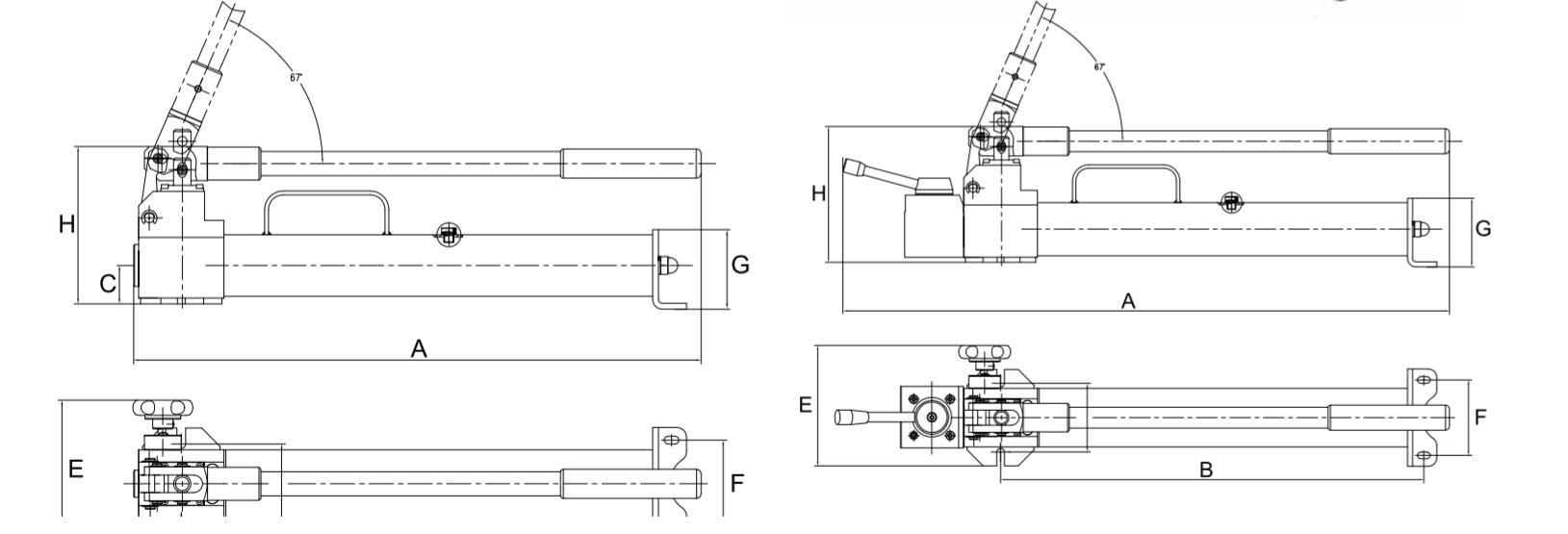

| MODEL | CYLINDER TYPE | USABLE OIL VOLUME | PRESSURE RATING | OIL DISPLACEMENT PER STROKE | HANDLE FORCE | PORT THREAD | A | B | C | D | E | F | G | H | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1ST STAGE | 2ND STAGE | 1ST STAGE | 2ND STAGE | ||||||||||||||
| CM³ | BAR | BAR | CM³ | CM³ | KG | MM | MM | MM | MM | MM | MM | MM | MM | KG | |||
| BP-280 * | SINGLE ACTING | 330.00 | 14.00 | 700.00 | 7.8 | 0.8 | 35.00 | 3/8-18NPT | 375.00 | 290.00 | / | 80.00 | 110.00 | 67.00 | ／ | 143.00 | 2.20 |
| BP-900A | 750.00 | 25.00 | 700.00 | 33.0 | 3.3 | 49.00 | 3/8-18NPT | 582.50 | 505.50 | 47.00 | 108.00 | 130.00 | 82.00 | 82.00 | 165.00 | 7.30 | |
| BP-2300A | 2,300.00 | 25.00 | 700.00 | 33.0 | 3.3 | 49.00 | 3/8-18NPT | 739.00 | 508.00 | 47.00 | 125.00 | 138.00 | ／ | 82.00 | 161.00 | 10.10 | |
| BP-4500 | 4,500.00 | 25.00 | 700.00 | 26.0 | 2.9 | 51.00 | 3/8-18NPT | 580.00 | 608.00 | 163.00 | 275.00 | 315.00 | 250.00 | - | 267.00 | 22.50 | |
| BP-7500 | 7,500.00 | 25.00 | 700.00 | 125.0 | 5.8 | 51.00 | 3/8-18NPT | 800.00 | 904.00 | 211.00 | 275.00 | 315.00 | 250.00 | - | 315.00 | 30.00 | |
| BPD-900A | DOUBLE ACTING | 750.00 | 25.00 | 700.00 | 33.0 | 3.3 | 49.00 | 3/8-18NPT | 582.50 | 505.50 | 29.00 | 108.00 | 108.00 | 82.00 | 82.00 | 165.00 | 8.80 |
| BPD-2300A | 2,300.00 | 25.00 | 700.00 | 33.0 | 3.3 | 49.00 | 3/8-18NPT | 739.00 | 508.00 | 29.00 | 125.00 | 108.00 | ／ | 82.00 | 161.00 | 11.60 | |
| BPD-4500 | 4,500.00 | 25.00 | 700.00 | 26.0 | 2.9 | 51.00 | 3/8-18NPT | 580.00 | 608.00 | 163.00 | 275.00 | 315.00 | 250.00 | - | 267.00 | 22.50 | |
| BPD-7500 | 7,500.00 | 25.00 | 700.00 | 125.0 | 5.8 | 51.00 | 3/8-18NPT | 800.00 | 904.00 | 211.00 | 275.00 | 315.00 | 250.00 | - | 315.00 | 30.00 | |
