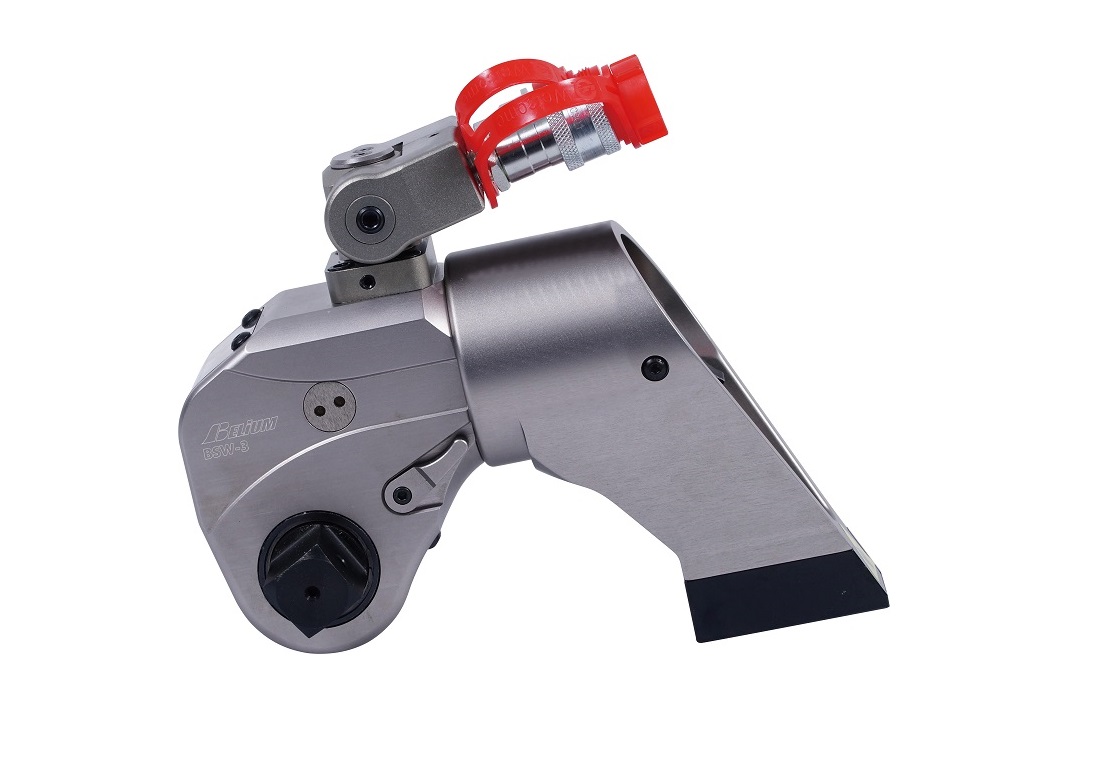

BSW SERIES SQUARE DRIVE TORQUE WRENCH

The BSW-series square drive hydraulic torque wrenches are compact, easy to use and versatile.The titanium-aluminium alloy and super high strength steel alloy construction means increased strength and durability while minimising weight. BSW-Series torque wrenches are available in 3/4'' to 2'' square drive models, with a torque range from 112 to 72,000 Newton Metres (82 to 53,280 ft/lbs). All models are fitted with a 360° swivel coupler and screw couplings.

BSW SERIES SQUARE DRIVE TORQUE WRENCH

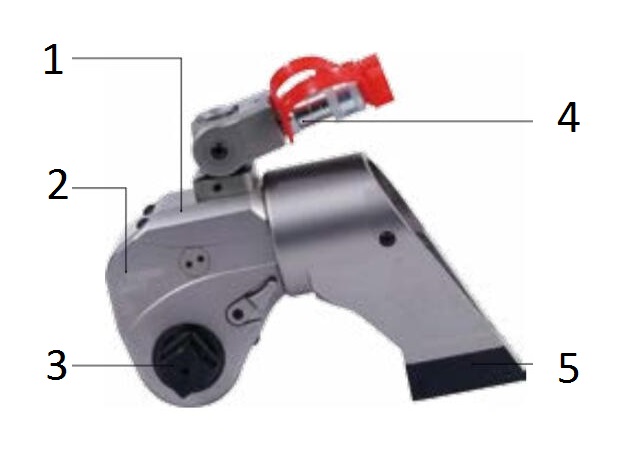

Features of BSW SERIES SQUARE DRIVE TORQUE WRENCH

  • 1. Using High-tech aerospace mateiral , integrally molded body. Strengthen the body for using durability
  • 2. Designing using 3D CAD modeling software, provide torque precision within ±3%
  • 3. Quick release square drive allows you to switch from tightening and loosening without any other special tools
  • 4. Swiveling inlet port Rotates 360 degrees
  • 5. 360° fine-tune type reaction arm

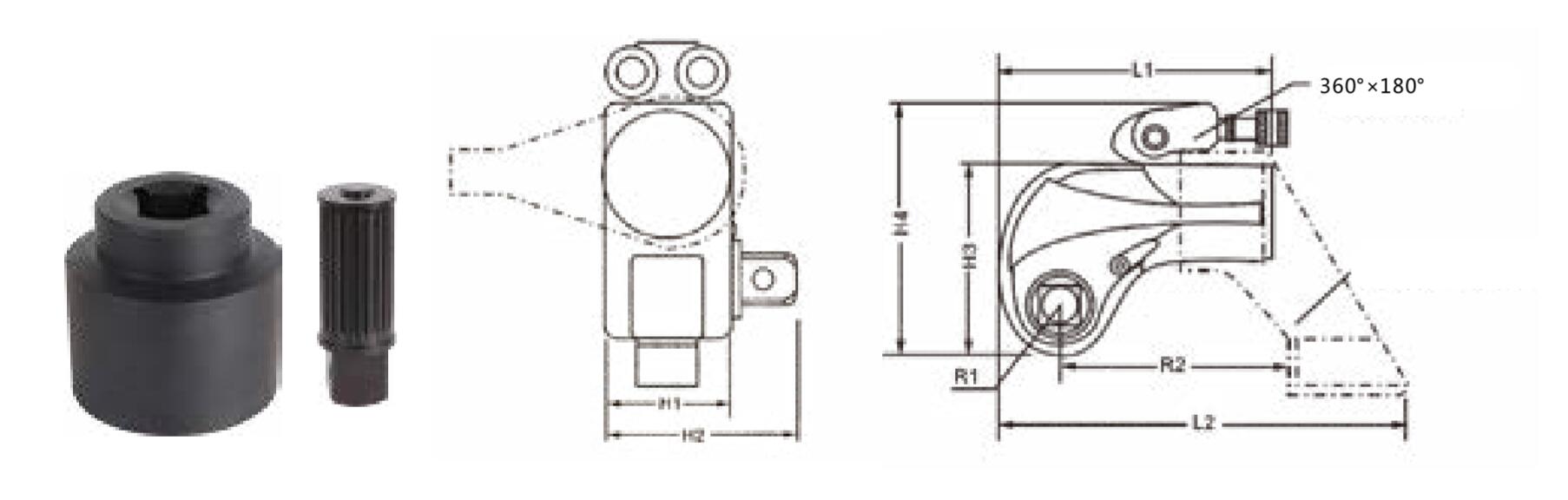

Design of BSW SERIES SQUARE DRIVE TORQUE WRENCH
Model Square Drive Torque Range Bolt Size Weight L1 L2 H1 H2 H3 H4 R1 R2
N.m m kg mm mm mm mm mm mm mm mm
BSW-1 3/4″ 183-1837 16-36 2 130 182 50 72 99 144 26 99
BSW-3 1″ 451-4512 22-48 4 166 241 68 95 130 176 34 134
BSW-5 1-1/2″ 752-7528 27-56 7 198 281 80 123 155 198 39 152
BSW-8 1-1/2″ 1078-10780 30-64 9.1 213 308 90 130 171 216 47 171
BSW-10 1-1/2″ 1551-15516 36-72 13.1 231 336 100 141 187 230 51 174
BSW-20 2-1/2″ 2666-26664 42-90 25 295 443 120 182 228 268 59 250
BSW-25 2-1/2″ 3572-34725 4866-48666 31 314 464 137 200 255 295 67 251
BSW-35 2-1/2″ 4866-486> 64-120 45 355 489 153 217 290 330 79 271

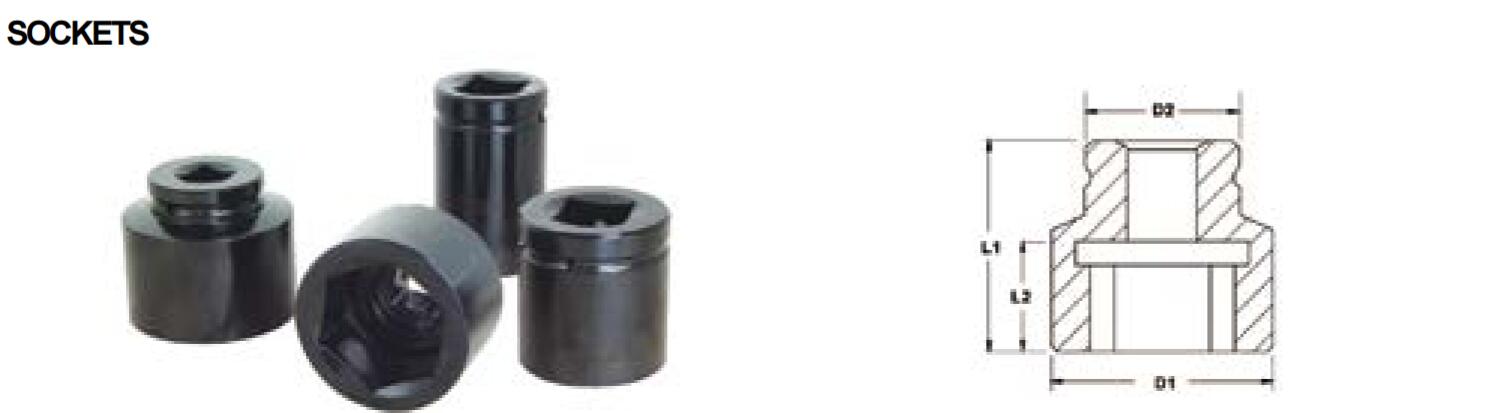

Model Wrench Model Cross Side Bolts
BSWT-75022 BSW-1 3/4×22 M14
BSWT-75024 3/4×24 M16
BSWT-75027 3/4×27 M18
BSWT-75030 3/4×30 M20
BSWT-75032 3/4×32 M22
BSWT-75036 3/4×36 M24
BSWT-75041 3/4×41 M27
BSWT-75046 3/4×46 M30
BSWT-75050 3/4×50 M33
BSWT-75055 3/4×55 M36
BSWT-10027 BSW-3 1×27 M18
BSWT-10030 1×30 M20
BSWT-10032 1×32 M22
BSWT-10036 1×36 M24
BSWT-10041 1×41 M27
BSWT-10046 1×46 M30
BSWT-10050 1×50 M33
BSWT-10055 1×55 M36
BSWT-10060 1×60 M39
BSWT-10065 1×65 M42
BSWT-10070 1×70 M45
BSWT-10075 1×75 M48
BSWT-10080 1×80 M52
BSWT-10085 1×85 M56
BSWT-10090 1×90 M60
BSWT-10095 1×95 M64
BSWT-15032 BSW-5, BSW-8, BSW-10 1-1/2×32 M22
BSWT-15036 1-1/2×36 M24
BSWT-15041 1-1/2×41 M27
BSWT-15046 1-1/2×46 M30
BSWT-15050 1-1/2×50 M33
BSWT-15055 1-1/2×55 M36
BSWT-15060 1-1/2×60 M39
BSWT-15065 1-1/2×65 M42
BSWT-15070 1-1/2×70 M45
BSWT-15075 1-1/2×75 M48
BSWT-15080 1-1/2×80 M52
BSWT-15085 1-1/2×85 M56
BSWT-15090 1-1/2×90 M60
BSWT-15095 1-1/2×95 M64
BSWT-150100 1-1/2×100 M68
BSWT-150105 1-1/2×105 M72
BSWT-150110 1-1/2×110 M76
BSWT-150115 1-1/2×115 M80
BSWT-150120 1-1/2×120 M85
BSWT-150130 1-1/2×130 M90
BSWT-150135 1-1/2×135 M95
BSWT-150145 1-1/2×145 M100
BSWT-150150 1-1/2×150 M105
BSWT-25055 BSW-20, BSW-25, BSW-35 2-1/2×55 M36
BSWT-25060 2-1/2×60 M39
BSWT-25065 2-1/2×65 M42
BSWT-25070 2-1/2×70 M45
BSWT-25075 2-1/2×75 M48
BSWT-25080 2-1/2×80 M52
BSWT-25085 2-1/2×85 M56
BSWT-25090 2-1/2×90 M60
BSWT-25095 2-1/2×95 M64
BSWT-250100 2-1/2×100 M68
BSWT-250105 2-1/2×105 M72
BSWT-250110 2-1/2×110 M76
BSWT-250115 2-1/2×115 M80
BSWT-250120 2-1/2×120 M85
BSWT-250130 2-1/2×130 M90
BSWT-250135 2-1/2×135 M95
BSWT-250140 2-1/2×140 /
BSWT-250145 2-1/2×145 M100
BSWT-250150 2-1/2×150 M105
BSWT-250155 2-1/2×155 M110
BSWT-250165 2-1/2×165 M115
BSWT-250175 2-1/2×175 M120
BSWT-250180 2-1/2×180 M125
