BPL&BPLF SERIES HYDRAULIC PULLER

FEATURES AND BENEFITS:
  • 1. The new type of oil pressure pull wheel tool adopted for easy operation.
  • 2. Traditional ordinary pull wheel leading to great effort needed.
  • 3. Freely rotate, Upon the center point from pull wheel to piston, the center point to be pulled is easily met.

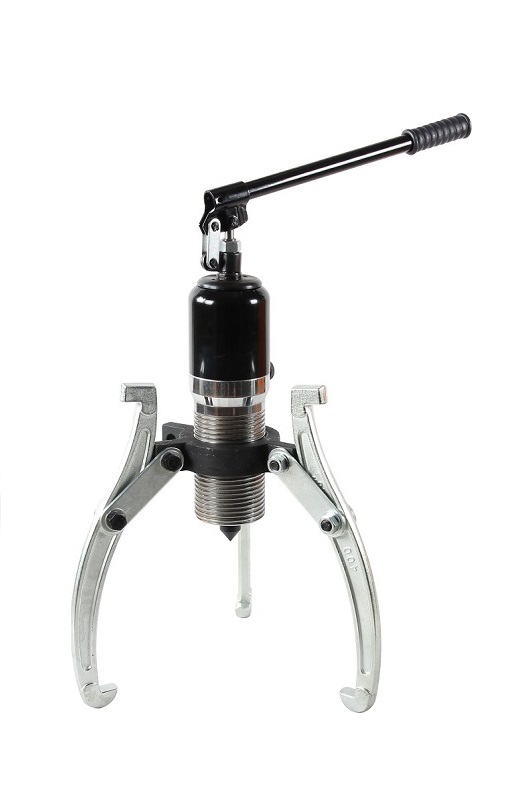

bpl-series-hydraulic-puller
FEATURES AND BENEFITS:
  • 1. The new type of oil pressure pull wheel tool adopted for easy operation.
  • 2. Traditional ordinary pull wheel leading to great effort needed.
  • 3. Freely rotate, Upon the center point from pull wheel to piston, the center point to be pulled is easily met.
  • 4. The cylinder in 30Ton or above must be assembled with large oil tank pump.
  • 5. Oil pipe coupler fitted with PT3/8" thread.

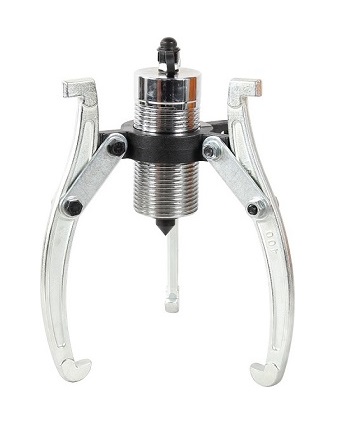

bplf-series-hydraulic-puller
Model Power Stroke Max.Reach Max.Spread
ton mm mm mm
BPL-5T 5 50 140 200
BPL-10T 10 50 160 250
BPL-15T 15 55 180 300
BPL-20T 20 75 200 350
BPL-30T 30 75 250 450
BPL-50T 50 75 350 550
BPLF-5T 5 50 140 200
BPLF-10T 10 52 160 250
BPLF-20T 20 55 200 350
BPLF-30T 30 55 250 450
BPLF-50T 50 75 350 550
BPLF-100T 100 105 400 600
BPLF-150T 150 180 550 1000
