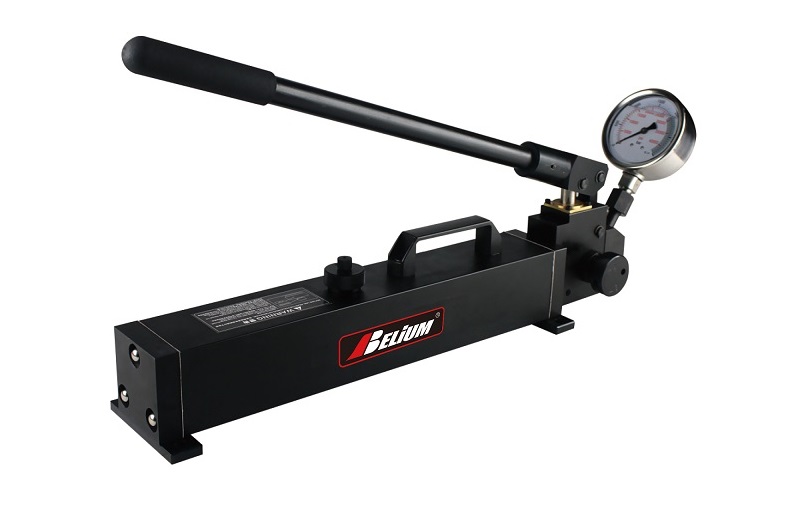

BHPA-2000 ULTRA HIGH PRESSURE HAND PUMP

Suitable for mechanical oiling disassembly, Hydraulic expansion sleeve and bolt tensioning tools.

FEATURES AND BENEFITS:
  • · High strength alloy steel construction for increased durability
  • · Double speed design, Internal high precision high and low pressure automatic switching valve , improve working efficiency
  • · Internal safety valve design, protection for over-load
  • · Compact design, easy to carry
  • · Installed with pressure gauge and adaptor, oil port thread BSP 1/4''
`
BHPA-2000 ULTRA HIGH PRESSURE HAND PUMP

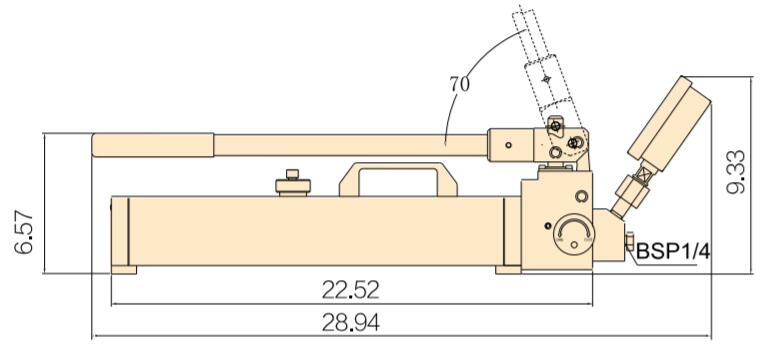

Design of BHPA-2000 ULTRA HIGH PRESSURE HAND PUMP

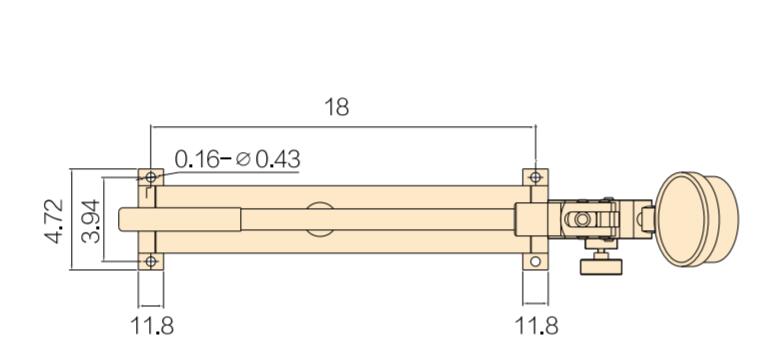

Design of BHPA-2000 ULTRA HIGH PRESSURE HAND PUMP
MODEL SPEED USABLE OIL VOLUME PRESSURE RATING OIL DISPLACEMENT PER STROKE HANDLE FORCE PORT THREAD WEIGHT
1ST STAGE 2ND STAGE 1ST STAGE 2ND STAGE
CM³ BAR BAR CM³ CM³ KG IN KG
BHAP-2000 2.00 1,600.00 18.00 1,500 32.0 0.8 20.00 1/4BSP 10.80
